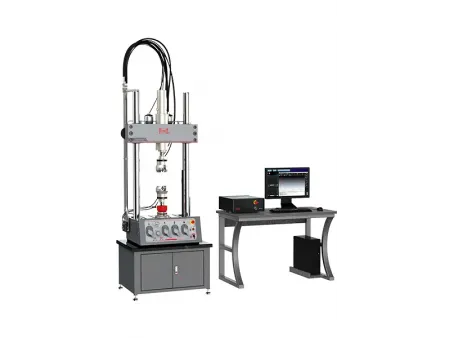

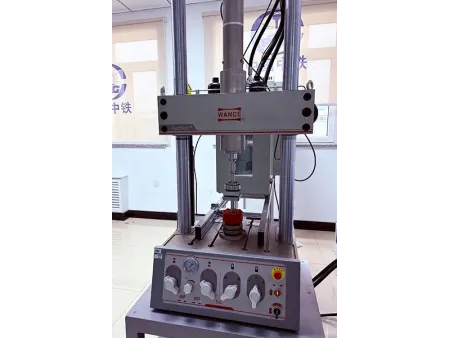

Servo-Hydraulic Fatigue Testing Machine, Table-Top
The servo-hydraulic fatigue testing machine is designed for dynamic characterization of metallic, non-metallic, and composite materials, as well as structural components. It supports a wide range of fatigue and fracture mechanics tests, including high-cycle fatigue (HCF), low-cycle fatigue (LCF), and crack growth studies. The tester can generate multiple loading waveforms, such as sine, triangle, and trapezoid. With appropriate fixtures, the testing machine can perform tension-tension, compression-compression, and tension-compression loading modes. For advanced environmental simulation, the system can be equipped with high-temperature chambers, low-temperature chambers, salt-spray devices, or other corrosion environments to reproduce real-world service conditions.
ASTM E399, ASTM 1820, ISO12135, GB/T21143, ISO 1099, ISO 12106, GBT 3075, GBT 5248, GBT 26077, ASTM E466, ASTM E60
| Model | | | |
| Force capacity, kN (rated dynamic force) | 5 | 10 | 25 |
| Force measurement range, kN (2%-100%FS) | 0.1-5 | 0.2-10 | 0.5-25 |
| Static force accuracy | ±0.5% | ||
| Dynamic force accuracy | ±2% | ||
| Actuator dynamic stroke, mm | 100 | ||
| Displacement range, mm | 0-100 (±50) | ||
| Displacement resolution, mm | 0.001 | ||
| Displacement accuracy | ±0.5% | ||
| Test frequency (Hz, Sine wave) | 0.01-60 | ||
| Minimum vertical space A, mm | 157-827 | ||
| Base height B, mm | 230 | ||
| Column spacing C, mm | 460 | ||
| Column diameter D, mm | 70 | ||
| Base width E, mm | 630 | ||
| Work surface depth F, mm | 500 | ||
| Height to actuator top G, mm | 1150-1820 | ||
| Overall height H, mm | 2100 | ||
| Height of alignment fixture plus load cell, mm | 123 | ||
| Base depth K, mm | 574 | ||
| Frame stiffness, N/m | 3.5x108 | ||
| Machine weight, kg | 260 | ||
| Alignment | 5% | ||
