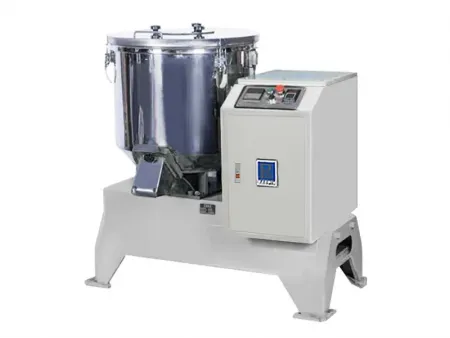

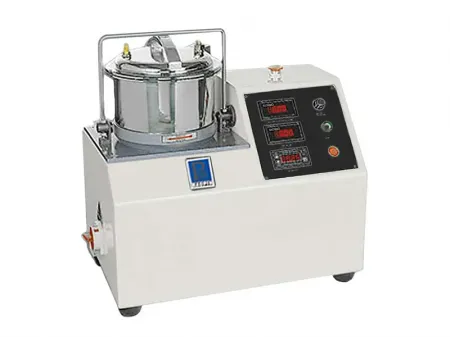

BP-GH Laboratory High Speed Mixer
Request a Quote
Laboratory mixers for fast mixing of polymers for the purposes of product research and development
- Vessel volume: 3L/5L/10L
- Electric heating
- Agitator speed: 1400rpm
The laboratory high speed mixer is designed for high-speed mixing of plastic pellets, powders, and masterbatch pigments. This high speed mixer offers infinitely adjustable speed control and features a stainless steel vessel for easy cleaning. The electric heating ensures efficient temperature control during the mixing process.
Accelerate your product development with the laboratory high speed mixer, designed for fast, efficient, and precise mixing of polymer materials.
Technical Data
Model: BP-GH-3L
- Total volume: 3L
- Effective volume: 2L
- Heating method: Electric heating
- Heating power: 1kW
- Mixing time: 6-10min/bowl
- Stirring blade speed: 1400rpm, frequency conversion speed regulation
- Motor power: 2.2kW, variable speed motor
- Power supply: AC380V, 50HZ, 3-phase 5-wire
Model: BP-GH-5L
- Total volume: 5L
- Effective volume: 3L
- Heating method: Electric heating
- Heating power: 1.5kW
- Mixing time: 6-10min/bowl
- Stirring blade speed: 1400rpm, frequency conversion speed regulation
- Motor power: 4kW, variable speed motor
- Power supply: AC380V, 50HZ, 3-phase 5-wire
Model: BP-GH-10L
- Total volume: 10L
- Effective volume: 8L
- Heating method: Electric heating
- Heating power: 3kW
- Mixing time: 6-10min/bowl
- Stirring blade speed: 1400rpm, frequency conversion speed regulation
- Motor power: 5.5kW, variable speed motor
- Power supply: AC380V, 50HZ, 3-phase 5-wire
