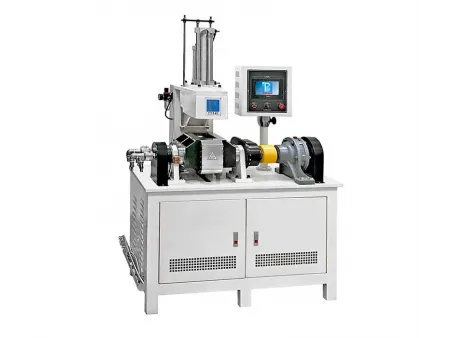

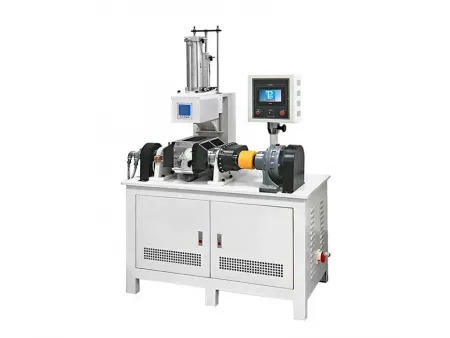

BP-8172-B Laboratory Internal Mixer
Laboratory mixers for mixing, dispersing, kneading, plasticizing and formula testing of rubber, plastic, and other polymers
- Chamber volume: 1L/3L/5L
- PLC control
- Water cooling
The laboratory internal mixer is primarily designed for the mixing and kneading of plastics and chemical raw materials, as well as a variety of low-viscosity materials. The mixer features a plc programmable lcd display, man-machine interface, and real-time display of temperature, time, and torque. With an automatic mixing process and easy operation, it is highly efficient, energy-saving, and user-friendly.
Discover how the laboratory internal mixer can streamline your formulation and material testing processes. Reach out to explore its capabilities today!
Applications
The laboratory internal mixer is widely used for mixing and kneading plastics, chemical raw materials, and low-viscosity materials, making it ideal for material research, formula optimization, and small-scale production.
- Mixing and kneading of plastic and chemical compounds
- Formula optimization and material development
- Small-batch production
- Chamber volume
1L/3L/5L - Temperature range
Room temperature to 260℃ - Controller
PLC programmable color touch screen with a man-machine interface operating system, allowing arbitrary setting and control of parameters such as temperature, time, and speed. The mixing process curve is displayed in real-time. - Discharge method
Motorized tilting for discharging - Tilt angle
110° - Speed ratio
1:1.27 - Mixing shaft type
Shear type, hollow shaft with water cooling - Rotor speed
0-50rpm, frequency conversion speed regulation - Cooling method
0.2-0.4MPa tap water cooling - Gear reducer
Totally enclosed oil bath gear reducer - Main motor
5kW variable frequency motor - Power supply
AC380V, 22A, 3-phase 5-wire (power connection port is provided by user)
