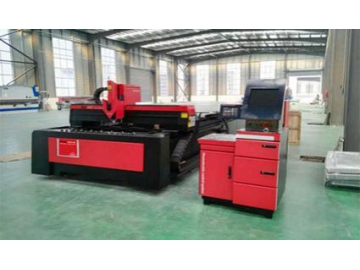

750W FCCDX Medium Power Fiber Laser Cutting System Metal Cutting Machine
Application

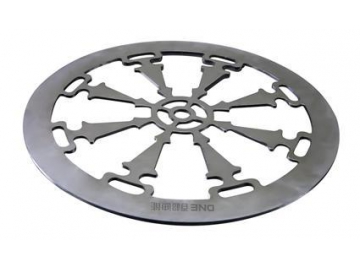

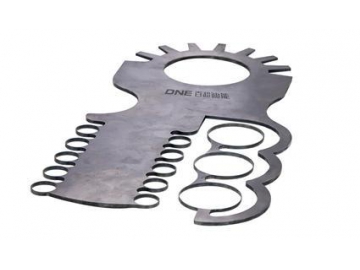

The 750W FCCDX medium power interchangeable fiber laser cutting machine is used to cut a variety of metal sheets and pipes, including quick cutting processes for stainless steel, carbon steel, galvanized sheets, electrolytic sheets, brass sheets, aluminum sheets, manganese steel, various alloy sheets, uncommon metals and more.
| Model | DNE-FCCDX-750W |
| Laser generator | Imported original fiber laser |
| Cutting range | 1500mm*3000m,1500*4000mm (optional) |
| Cutting speed | Depending on the material and thickness |
| Repositioning accuracy | ±0.02mm |
| Total consumed power | < 10KW |
| Power demand | 380V/50Hz/60Hz/60A |
| Dimension of occupied area | About 9000*5000MM (Using cutting area of 1500*3000mm as an example) |
Features of the 750W FCCDX interchangeable fiber laser cutting machine
1. The laser cutting machine is equipped with a high strength machine bed that has undergone a standard annealing treatment in a high temperature electric furnace. This guarantees a stable machine precision over a long service life.
2. The 750W FCCDX medium power fiber laser cutting machine uses an imported fiber laser generator that features a high quality beam, stable performance, and little to no need for maintenance. Each of these features combines for a service life of more than 100,000 hours.
3. The fiber laser generator features a high electro-optical conversion efficiency of 30%, which significantly saves power consumption during the working process, leading to a reduction in operation costs.
4. An imported servo motor and gearing system on the laser cutting machine assists in achieving a high precision and cutting speed.
Shenzhen DNE is a listed Sino-Swiss Joint Venture by DNE Laser and Bystronic Group, which mainly work on the innovation of laser cutting technology. DNE offers FCCDX 750W medium power fiber laser cutting system and other metal cutting machines. Bystronic develops and sells metal sheet processing system, Bystronic Group was founded in 1964, headquarters are in Niederönz, Switzerland. Bystronic has been committed to laser cutting research and development since 1981, which specializes in manufacturing laser cutting machines.
