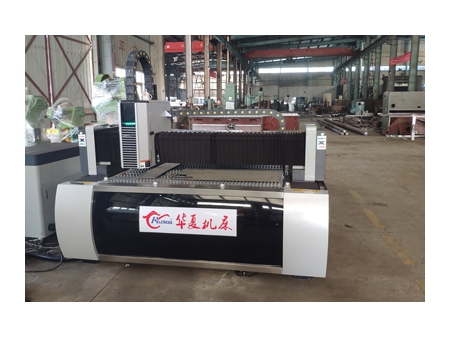

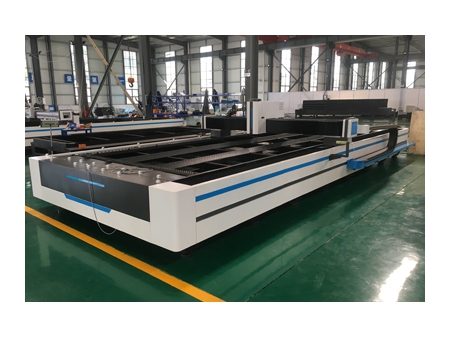

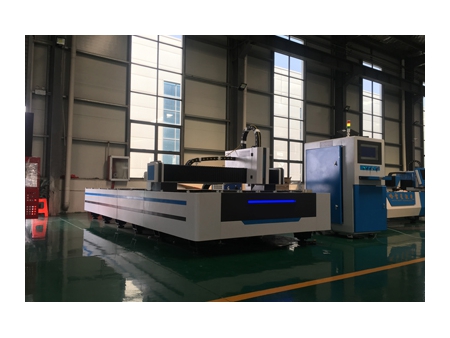

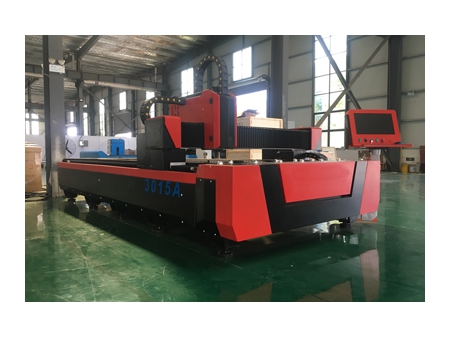

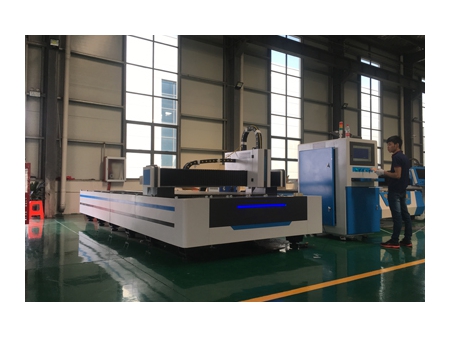

Introduction

The CNC laser system metal cutting machine can shear sheets made from various materials, including carbon steel, stainless steel, aluminum alloy and copper. These metals and sheets can all be in various thicknesses.

Parameters

Cutting carbon steel (oxygen assisted)

Material		Carbon steel (oxygen assisted)
Thickness (mm)		1	2	3	4	5	6	8	10	12	14	16	18	20	22	25
500W	Cutting speed (m/min)	43325	3-4.5	1.8-3	1.3-1.5	0.9-1.1	0.6-0.9	-	-	-	-	-	-	-	-	-
1000W		15-24	5-7.5	2.4-4	2-2.4	1.8-2	1.4-1.6	0.8-1.2	0.6-1	0.5-0.8	-	-	-	-	-	-
2000W		24-30	5.5-8	3.5-4.8	2.8-3.5	1.8-2.6	1.2-1.8	1.1-1.3	0.9-1.2	0.7-0.8	0.6-0.7	0.4-0.6	-	-	-	-
3000W		30-42	7-9	4-6.5	3.5-4.5	3-3.5	2.5-3.2	1.8-2.6	1.4-2	1.2-1.6	0.9-1.4	0.8-1.2	0.7-1	0.6-0.8	0.4-0.6	-
4000W		40-55	8-10	4.5-6.5	43195	3-4.2	3-3.5	43134	1.5-2.5	1.4-2	1-1.6	0.8-1.2	0.8-1.1	0.7-1	0.6-0.8	0.3-0.5
6000W		60-80	9-12	4-7	4.2-5.5	3.5-4.2	43163	2.2-3.2	1.8-2.5	1.6-2	1.5-1.8	0.8-1.5	0.9-1.2	0.8-1.1	0.7-0.9	0.4-0.6
8000W		70-90	10-13	4-7	4.7-5.5	3.8-4.5	3.3-4.2	2.5-3.5	2.2-2.7	1.8-2.1	1.7-1.9	0.9-1.7	0.9-1.2	1.0-1.5	0.8-1	0.5-0.7
10000W		80-100	10-13	4-7	4.7-5.5	3.8-4.5	3.3-4.2	2.5-3.5	2.2-2.7	1.8-2.1	1.7-1.9	0.9-1.7	0.9-1.2	1.0-1.5	0.8-1.0	0.5-0.7
12000W		80-100	10-13	4-7	4.7-5.5	3.8-4.5	3.3-4.2	2.5-3.5	2.2-2.7	1.8-2.1	1.7-1.9	0.9-1.7	0.9-1.2	1.0-1.5	0.8-1.0	0.5-0.7

Cutting stainless steel (air assisted)

Material		Stainless steel (air assisted)
Thickness (mm)		1	2	3	4	5	6	8	10	12	14	20	25	30	40
500W	Cutting speed (m/min)	8-13	2.4-5.0	0.6-0.8	-	-	-	-	-	-	-	-	-	-	-
1000W		18-25	7-12	1.8-2.5	1.2-1.3	0.6-0.7	-	-	-	-	-	-	-	-	-
2000W		24-30	10-17	4-6.5	3-4.5	1.8-2.5	1.2-2	0.7-1	-	-	-	-	-	-	-
3000W		30-42	18-21	8-12	6-9	3-5	3-4.3	1.5-2	0.8-1	0.5-0.8	-	-	-	-	-
4000W		40-55	20-30	12-18	8-12	4-6.5	4-6.5	1.8-3	0.8-1.5	0.6-1	0.5-0.8	-	-	-	-
6000W		60-80	30-42	18-24	12-18	8-12	6-9	4-5	1.8-2.5	1.2-1.8	0.6-0.8	0.5-0.8	-	-	-
8000W		70-90	40-55	30-38	18-24	10-18	8-14	6-8	4-5	1.8-3	1.2-1.8	0.6-0.7	0.5-0.6	0.4-0.5	-
10000W		80-100	70-90	40-55	30-38	18-24	12-17	8-14	6-8	3-5	1.8-3	1.2-1.8	0.6-0.7	0.5-0.6	0.4-0.5
12000W		100-120	80-100	50-65	40-55	30-38	18-24	12-17	8-14	6-8	3-5	1.8-3	1.2-1.8	0.6-0.7	0.5-0.6

Cutting aluminum sheet

Material		Aluminum sheet
Thickness (mm)		1	2	3	4	5	6	8	10	12	14	20	25	35
500W	Cutting speed (m/min)	4-5.5	0.5-1	-	-	-	-	-	-	-	-	-	-	-
1000W		6-10	2.8-3.6	0.5-1	-	-	-	-	-	-	-	-	-	-
2000W		20-25	7-10	4-6	2-3	1.2-1.8	0.7-1	-	-	-	-	-	-	-
3000W		25-40	10-18	7-10	4-5.5	3-4	1.5-2.5	0.7-1	0.5-0.7	-	-	-	-	-
4000W		40-55	15-25	10-15	8-10	5-7	3.5-4	1.5-2	1-1.5	0.7-0.9	0.5-0.7	-	-	-
6000W		55-65	25-35	13-18	10-12	6-10	4-6	2-3	1.5-2.1	0.8-1.4	0.7-1	0.5-0.7	-	-
8000W		80-90	35-50	21-30	13-18	9-12	4.5-8	4-6	2.2-3	1.5-2	1-1.6	0.7-1	0.5-0.7	-
10000W		80-100	80-90	35-50	21-30	13-18	9-12	4.5-8	4-6	2.2-3	1.5-2	1-1.6	0.7-1	0.5-0.7
12000W		100-120	80-100	80-90	35-50	21-30	13-18	9-12	4.5-8	4-6	2.2-3	1.5-2	1-1.6	0.7-1

Cutting copper sheet

Material		Copper sheet
Thickness (mm)		1	2	3	4	5	6	8	10	12	16	20
500W	Cutting speed (m/min)	4-5.5	0.5-1	-	-	-	-	-	-	-	-	-
1000W		6-10	2.8-3.6	0.5-1	-	-	-	-	-	-	-	-
2000W		14-16	4.5-6.5	2.5-3.5	1.5-2	1.4-1.6	-	-	-	-	-	-
3000W		25-35	10-15	5-8	3.5-5	2.5-3.2	1.2-2	0.7-0.9	-	-	-	-
4000W		35-45	10-15	7-10	5-8	3.5-5	1.5-2.5	0.8-1.5	0.5-0.8	-	-	-
6000W		50-60	25-30	12-18	8-10	6-7	3.5-4.5	1.6-2.2	0.8-1.4	0.6-0.8	-	-
8000W		70-85	30-40	15-24	9-15	7-9	4.5-6.5	2.4-4	1.5-2.2	0.8-1.5	0.6-0.8	-
10000W		80-90	70-85	30-40	15-24	9-15	7-9	4.5-6.5	2.4-4	1.5-2.2	0.8-1.5	0.6-0.8
12000W		80-100	80-90	70-85	30-40	15-24	9-15	7-9	4.5-6.5	2.4-4	1.5-2.2	0.8-1.5

Structure

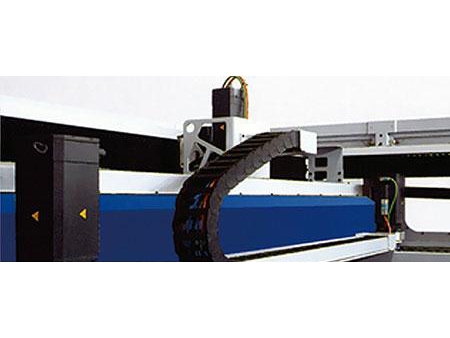

X axis bilateral synchronous drive

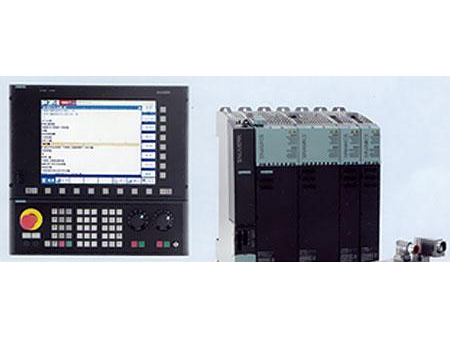

Numerical control system and drive

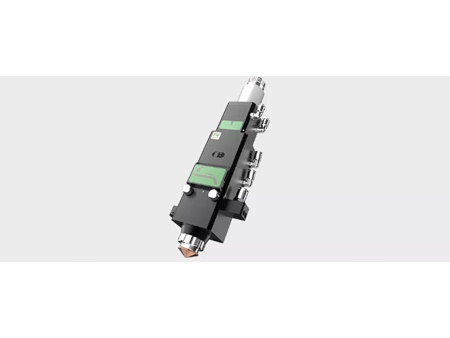

Laser cutting head

Features

The motor is not situated on the beam, and is instead located on both sides in order to reduce the bed load, facilitating the cutting process of both metal plate and sheet.
The entire machine area uses an optimal laser beam in order to achieve uniform, stable and high quality cutting sections and performance.
The machine combines an IPG laser generator, Raycus digital control, Max etc drive system and a Rofin cutting parameters library, significantly improving the processing efficiency.
The cutting machine is an automatic exchange bed, and its interface is a humanized operation.
