G80 Clevis Foundry Hook

G80 Clevis Foundry Hook
G80 Clevis Foundry Hook
Request a Quote

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

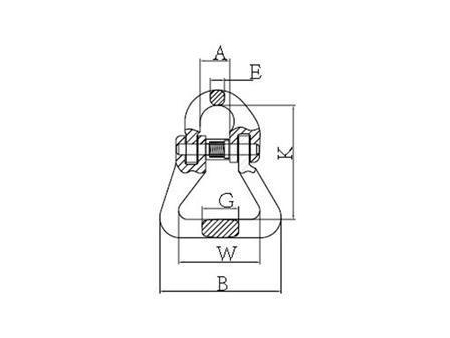

Technical Parameters
WEIGHT/kg Working Load Limit (T) Breaking Load (T) A±0.5 B±1.2 M±2 E±1 C±1 N±0.5 N±2 L±2
1.1 2 8 9.5 37 128 63.4 18 18 31 161
2.5 3.15 12.6 13 49 156 76.9 23 32 38 199
WEIGHT/kg Working Load Limit (T) Breaking Load (T) A±1 E±1.5 B±1 M±1.5 L±3
2 5.3 21.2 15.5 74 49.5 153.75 212.6
