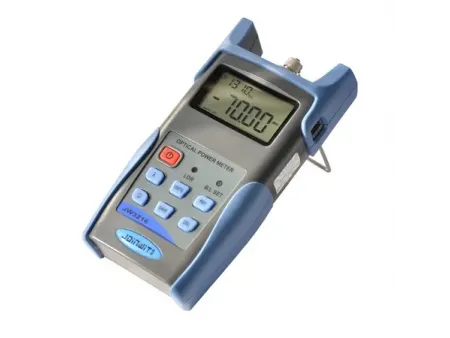

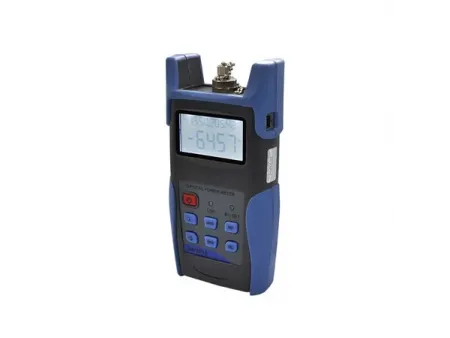

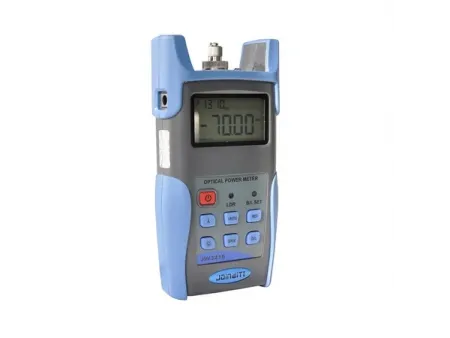

Handheld Optical Power Meter
Request a Quote
JW3216
Precision and efficiency are necessary in fiber optic network operations, where reliable tools have an important role in maintaining performance. Designed with these demands in mind, this handheld optical power meter combines advanced features and an ergonomic design, making it ideal for network operators, installation teams, research institutions, and component manufacturers. Built for durability and ease of use, it offers a comprehensive set of functionalities to streamline testing and data management across various applications.
Features
- Supports automatic wavelength identification for precise measurements.
- Detects signal frequencies, enabling advanced diagnostics.
- Intelligent backlight control enhances visibility in any lighting condition.
- Provides a large storage capacity to save and analyze test data.
- Operates with power adapters, standard batteries, or rechargeable batteries for field flexibility.
- Enables seamless data transfer through USB communication.
- Includes a user-friendly interface for intuitive operation and quick navigation.
Specifications
| Model | JW3216 |
| Calibration Wavelength | 850/1300/1310/1490/1550/1625nm |
| Detector Type | InGaAs/Si |
| Measurement Range | -70 to 6dBm (A), -50 to 26dBm (C) |
| Uncertainty | ±0.15dB (3.5%) |
| Linearity () | ±0.02dB |
| Display Resolution (dB) | 0.01dB |
| Frequency Identification | 270Hz/330Hz/1kHz/2kHz |
| Measurement Wavelength | 850/1300/1310/1490/1550/1625nm |
| Date Storage | 1000 records |
| Communication Interface | USB |
| Optical Connector Type | FC/SC/ST |
| Power Supply | 3*AA 1.5V alkaline batteries |
| Power Supply Adapter | 5V |
| Battery Operating Time | 200h |
| Operating Temperature | -10 to 60℃ |
| Storage Temperature | -25 to 70℃ |
| Dimensions | 175×90×44.5mm |
