Air Hose
Air hoses play a crucial role in industrial operations, serving as conduits for compressed air to power machinery and equipment. We provide a wide range of air hoses tailored to meet the specific needs of various industries. With a focus on durability, flexibility, and safety, our air hoses ensure reliable performance across diverse industrial applications.

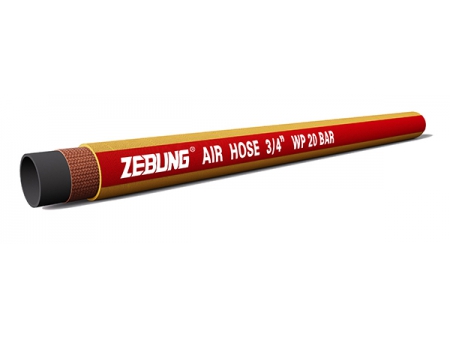

Air Hose with braided reinforcement
Reinforcement layer: single/double layer braiding with high-strength textile cord

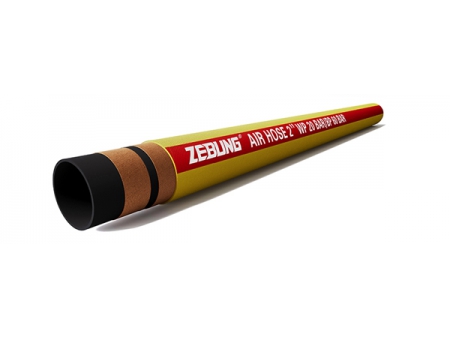

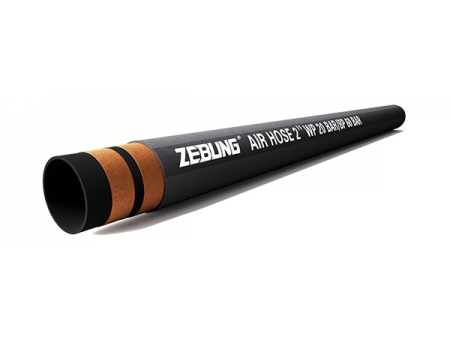

Air Hose with spiral reinforcement
Reinforcement layer: High-strength spiral textile cord
Air hoses are among the most common types of industrial hoses and are utilized in a wide variety of applications. The inner layer of the air hose is constructed from SBR compound synthetic rubber and features a textile cord with a helical steel wire reinforcement layer. The outer layer of the hose is made from black SBR rubber, providing UV resistance. Our air hoses are often used in medium and heavy-duty projects, boasting high strength, flexibility, and long service lives.
Basic Information- Inner tube: Natural Rubber (NR) SBR (tensile strength ≥ 6MPa)
- Outer cover: NR SBR (tensile strength ≥ 9MPa)
- Operating temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black and yellow.
Applications
1. Industrial Sector: The hose can be used in industrial equipment, machinery, mining equipment, construction equipment, and other fields.
2. Automotive Sector: The hose can be used in engine components pneumatic components, chassis components pneumatic components, dashboard pneumatic components, etc.
3. Construction Sector: The hose can be used on construction sites, such as spray machines, sandblasting machines, pipeline pressure testing, etc.
Technical Parameters
1. Air Hose with Braided Reinforcement
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| ADB006-300 | 6 | 1/4" | 14 | 20 | 300 | 60 | 900 | 0.17 | 100 |
| ADB008-300 | 8 | 5/16" | 16 | 20 | 300 | 60 | 900 | 0.21 | 100 |
| ADB010-300 | 10 | 3/8" | 18 | 20 | 300 | 60 | 900 | 0.24 | 100 |
| ADB013-300 | 13 | 1/2" | 22 | 20 | 300 | 60 | 900 | 0.34 | 100 |
| ADB016-300 | 16 | 5/8" | 26 | 20 | 300 | 60 | 900 | 0.46 | 100 |
| ADB019-300 | 19 | 3/4" | 29 | 20 | 300 | 60 | 900 | 0.53 | 100 |
| ADB022-300 | 22 | 7/8" | 34 | 20 | 300 | 60 | 900 | 0.65 | 100 |
| ADB025-300 | 25 | 1" | 37 | 20 | 300 | 60 | 900 | 0.71 | 100 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
2. Air Hose with Spiral Reinforcement
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| AD019-150 | 19 | 3/4" | 30.4 | 10 | 150 | 30 | 450 | 0.62 | 61 |
| AD025-150 | 25 | 1" | 36.4 | 10 | 150 | 30 | 450 | 0.77 | 61 |
| AD032-150 | 32 | 1-1/4" | 43.8 | 10 | 150 | 30 | 450 | 0.95 | 61 |
| AD038-150 | 38 | 1-1/2" | 50.8 | 10 | 150 | 30 | 450 | 1.21 | 61 |
| AD045-150 | 45 | 1-3/4" | 57.8 | 10 | 150 | 30 | 450 | 1.40 | 61 |
| AD051-150 | 51 | 2" | 63.8 | 10 | 150 | 30 | 450 | 1.56 | 61 |
| AD064-150 | 64 | 2-1/2" | 77.8 | 10 | 150 | 30 | 450 | 2.19 | 61 |
| AD076-150 | 76 | 3" | 89.8 | 10 | 150 | 30 | 450 | 2.56 | 61 |
| AD089-150 | 89 | 3-1/2" | 102.8 | 10 | 150 | 30 | 450 | 2.95 | 61 |
| AD102-150 | 102 | 4" | 116.6 | 10 | 150 | 30 | 450 | 3.34 | 61 |
| AD019-150 | 19 | 3/4" | 30.4 | 20 | 300 | 60 | 900 | 0.62 | 61 |
| AD025-150 | 25 | 1" | 36.8 | 20 | 300 | 60 | 900 | 0.77 | 61 |
| AD032-150 | 32 | 1-1/4" | 45.8 | 20 | 300 | 60 | 900 | 1.20 | 61 |
| AD038-150 | 38 | 1-1/2" | 51.8 | 20 | 300 | 60 | 900 | 1.39 | 61 |
| AD045-150 | 45 | 1-3/4" | 58.8 | 20 | 300 | 60 | 900 | 1.60 | 61 |
| AD051-150 | 51 | 2" | 64.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| AD064-150 | 64 | 2-1/2" | 78.6 | 20 | 300 | 60 | 900 | 2.19 | 61 |
| AD076-150 | 76 | 3" | 91.4 | 20 | 300 | 60 | 900 | 2.75 | 61 |
| AD089-150 | 89 | 3-1/2" | 106.4 | 10 | 150 | 30 | 450 | 3.53 | 61 |
| AD102-150 | 102 | 4" | 119.4 | 20 | 300 | 60 | 900 | 4.00 | 61 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
