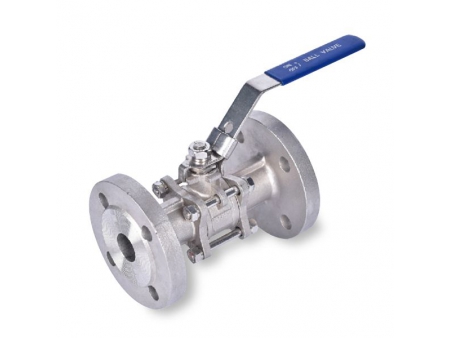

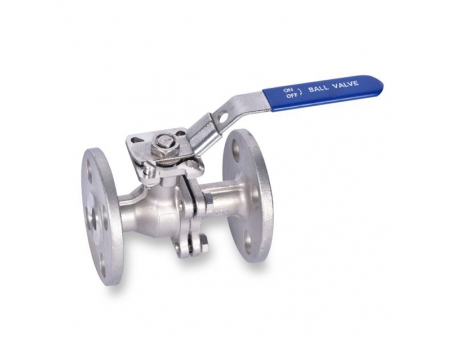

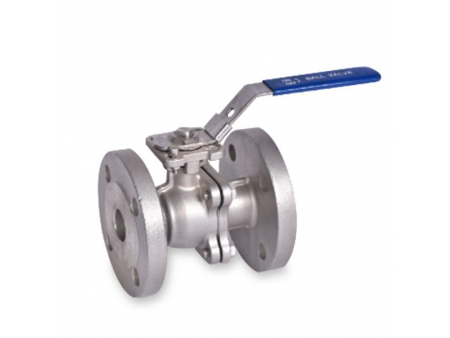

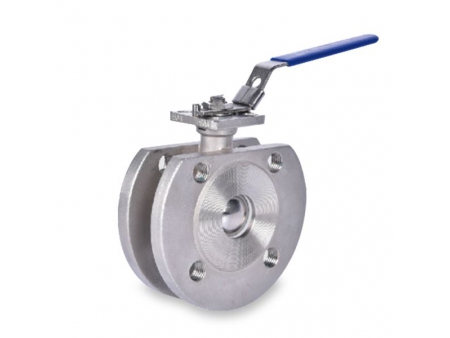

Flanged Ball Valve
Request a Quote
Applications
Flanged ball valve can be used in various situations, including water conveyance pipelines, heating distribution pipelines, high-temperature and high-pressure media conveyance pipelines in steel mills, and petroleum pipelines.
Basic Information
- Size Range
- DN15-DN200
- Temperature Range T
- 0-100℃
- Maximum Allowable Operating Pressure PN
- 1.0-2.5Mpa
- Pressure Rating
- 1.5-3.75Mpa (Shell)
1.1-2.75Mpa (Seal)
- Applicable Media
- Freshwater, seawater, air, weak acid-base, and so on.
Features
- Wear-resistant: The valve core is made of spray welding of alloy and the O-ring is made of overlay welding of alloy, permitting minimal wear during valve operation (with a hardness coefficient of 65-70).
- Excellent sealing performance: Flanged ball valves are manually ground to ensure a perfect fit between the valve core and the O-ring, providing reliable sealing performance.
- Light operation even when external forces exceed the pre-tension force of the spring.
Materials
| No. | Part | Materials | No. | Part | Material |
| 1 | Valve Body and Valve Bonnet | CF8, CF8M, CF3, CF3M, WCB | 5 | Packing | FTFE, Graphite |
| 2 | Valve Core | CF8, CF8M, CF3, CF3M, WCB | 6 | O-Ring | PTFE |
| 3 | Valve Seat | FTFE, PPL | 7 | Bolts | Stainless Steel, 35CrMoA |
| 4 | Valve Stem | CF8, CF8M, CF3, CF3M, 2Cr13 | 8 | Nuts | Stainless Steel, 45#, 35CrMoA |
Specifications
| Size | L | ØD | ØD1 | ØD2 | C | f | n-Ød |
| DN15 | 130 | 96 | 66 | 46 | 14 | 2 | 4-Ø14 |
| DN20 | 140 | 106 | 76 | 64 | 14 | 2 | 4-Ø14 |
| DN25 | 160 | 116 | 86 | 66 | 14 | 2 | 4-Ø14 |
| DN32 | 166 | 136 | 100 | 76 | 16 | 3 | 4-Ø18 |
| DN40 | 180 | 146 | 110 | 85 | 18 | 3 | 4-Ø18 |
| DN50 | 200 | 160 | 126 | 100 | 18 | 3 | 4-Ø18 |
| DN65 | 220 | 180 | 146 | 118 | 20 | 3 | 8-Ø18 |
| DN80 | 260 | 196 | 160 | 132 | 20 | 3 | 8-Ø18 |
| DN100 | 280 | 216 | 180 | 165 | 20 | 3 | 8-Ø18 |
| DN125 | 320 | 246 | 210 | 186 | 22 | 3 | 8-Ø18 |
| DN150 | 360 | 280 | 240 | 210 | 24 | 3 | 8-Ø22 |
| DN200 | 400 | 336 | 296 | 266 | 26 | 3 | 12-Ø22 |
Certifications
| Item | Standard | Optional Standard |
| Design & Manufacture | GB12237 | BS5351, ANSI B16.34 |
| Face to Face Dimension | GB12221-89 | ANSI B16.10 |
| Flange Connection | JB/T-79 | ANSI B16.5 |
| Valve Test | JB/T-9092 | API598 |
