Horizontal Waste Baler

Request a Quote

Website: http://wastemachineltd.com/2-1-waste-baler.html

Horizontal waste baler is used to compress waste paper and similar materials into compact bales under normal conditions. These bales are then securely tied with annealed wire, significantly reducing their volume to minimize transportation frequency, lower shipping costs, and enhance economic efficiency.

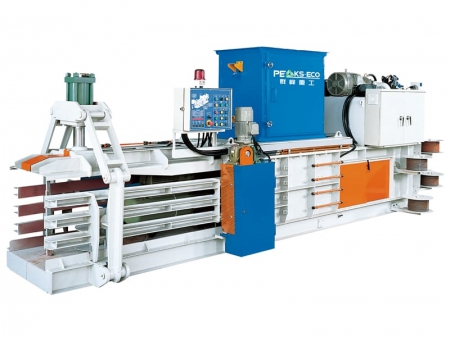

Horizontal Waste Baler, Model 1250

Machine type	Model 1250 Fully automatic horizontal waste baler	Model 1250 Semi-automatic horizontal waste baler
Main cylinder	Cylinder diameter 250mm Stroke 2700mm	Cylinder diameter 250mm Stroke 2700mm
Bale size	Length: adjustable Width: 1100mm Height: 1250mm	Length: adjustable Width: 1100mm Height: 1250mm
Motor power	37kW	37kW
Bale density	Approx. 450kg/m³	Approx. 450kg/m³
Binding lines	5 lines	5 lines
Operation method	PLC control, automatic binding	Push button operation, manual binding
Capacity	Approx. 8-12 bale/h	Approx. 7-10 bale/h

Horizontal Waste Baler, Model 850

Machine type	Model 850 Fully automatic horizontal waste baler	Model 850 Semi-automatic horizontal waste baler
Main cylinder	Cylinder diameter 220mm Stroke 2600mm	Cylinder diameter 220mm Stroke 2600mm
Bale size	Length: adjustable Width: 1100mm Height: 850mm	Length: adjustable Width: 1100mm Height: 850mm
Motor power	30kW	30kW
Bale density	Approx. 450kg/m³	Approx. 450kg/m³
Binding lines	3 lines	3 lines
Operation method	PLC control, automatic binding	Push button operation, manual binding
Capacity	Approx. 7-10 bale/h	Approx. 6-9 bale/h

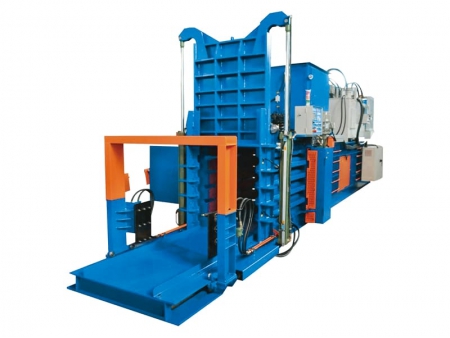

Fully Automatic Horizontal Waste Baler, Model FDY-1250

Machine type	Model 1250 Fully automatic horizontal waste baler with vertical lift door
Main cylinder	Cylinder diameter 280mm Stroke 4200mm
Bale size	Length: adjustable Width: 1100mm Height: 1250mm
Motor power	55kW
Bale density	Approx. 500kg/m³
Binding lines	7 lines
Operation method	Push button operation, manual binding
Capacity	Approx. 5-10 bale/h
