Monorail crane is a type of light and small material handling equipment. The whole set overhead crane is used with CD and MD type electric hoist, electric chain hoist, etc. It's usually used in the environment that the headroom is too small to set the main girder and end truck of the crane.

Specification

Capacity	0.5-10t
Span	3-25m
Lifting height	6-30m
Work class	A3-A5
Power supply	380V, 50Hz, 3-phase or customized
Control method	Pendant control, remote Control

Advantages

Monorail cranes are designed for flexibility and functionality, providing an ergonomic design that offers versatility and usability.
A monorail crane can be suspended directly from the overhead building structure without the need for interfering support columns.
In an under-running system, the end trucks operate on the lower flange of the runway beams. These beams form the crane runway and are typically much lighter in construction.
Monorail crane can easily operate even in very wide bays, resulting in lower equipment costs and lighter design requirements in the building or supporting structure.
Another advantage of using a monorail crane system is that multiple under-hung crane runways can be installed side by side and operated simultaneously.

Application

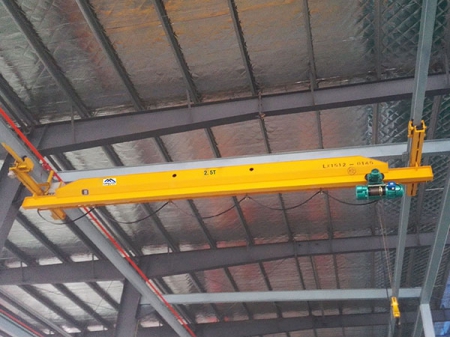

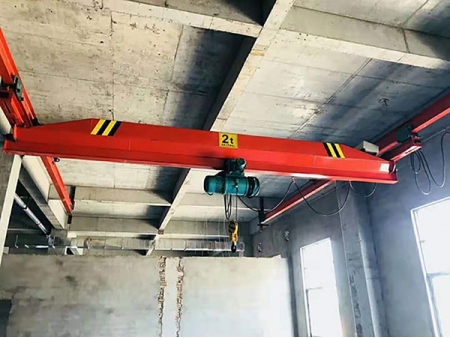

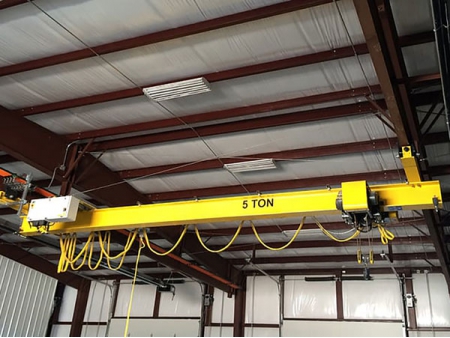

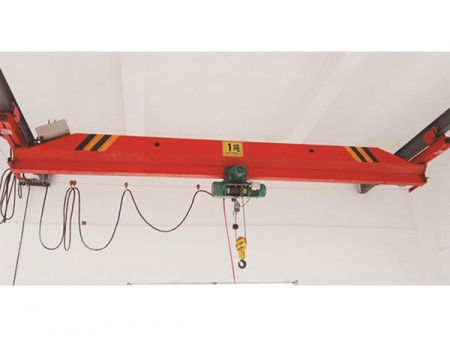

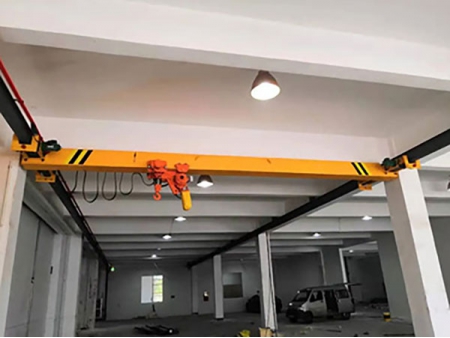

Monorail crane is a kind of small and lightweight overhead crane. It is widely applied in workshops of production and assembly lines, warehouses and other places to lift and move heavy loads. The underhung crane, as its name implies, is suspended from building roof structure and runs at the bottom flange of runway beam.
