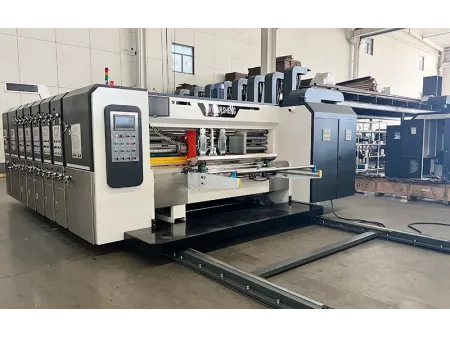

Rotary Die-Cutter (400 sheets/min)
Request a Quote
Corrugated board converting machine with lead edge feeder for flexo printing, slotting, die-cutting and stacking
Structure
Slotter

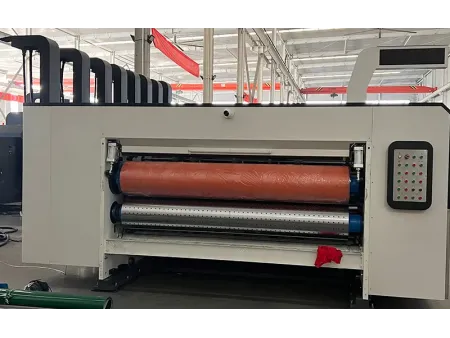

Rotary Die-Cutter
Electrical Cabinet
Electrical Cabinet
Printer
Lead-Edge Feeder
Technical Specifications
| Max. sheet pass size, mm | 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc. |
| Design speed, pcs/min | 200 / 300 / 400 |
| Feeding unit | Light-pressure, pressure-free |
| Printing unit | 1-6 colors |
| Slotter unit | Computer-controlled |
| Die cutting unit | Servo control |
| Waste removal & stacking unit | Max. stacking height 1600mm |
