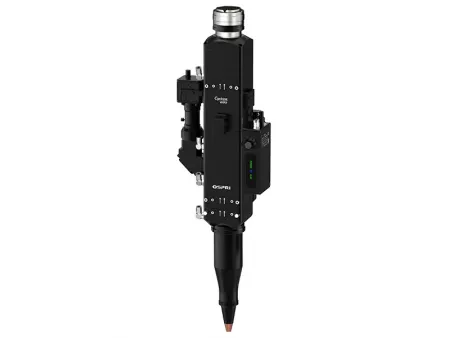

20kW Single-Axis Wobble Laser Welding Head
LRW20A0
Fiber laser welding head for processing various metals with power ratings of up to 20kW
LRW20A0
Fiber laser welding head for processing various metals with power ratings of up to 20kW
The high-power single-axis wobble welding head is equipped with an adjustable ring mechanism driven by a precision motor, ensuring stable and consistent performance. A fully water-cooled body provides effective temperature reduction, enabling long-term continuous operation. The head also features contamination monitoring for timely alerts and collision protection for rapid recovery, minimizing downtime and ensuring production reliability.
| Model | LRW20A0 |
| Rated Power | 20kW |
| Wavelength | 1080nm±10nm |
| Wobble Range | 0~4mm |
| Wobble Frequency | 0~150Hz |
| Collimation Length | 100mm/150mm |
| Focal Length | 150mm/200mm/250mm/300mm |
| Blowing Method | Coaxial/paraxial |
| Auxiliary Gas Pressure | ≤1MPa |
| Weight | 4.6kg |
The single-axis wobble laser welding head is designed for 20kW high-power welding and is suitable for processing stainless steel, carbon steel, copper, and aluminum alloys.
Ring-shaped adjustable mechanism with a high-precision motor delivers low vibration, reduced noise, and smooth operation
Extends welding capability beyond thickness limits, adapting to complex engineering requirements and reducing process difficulty
Provides timely alerts and automatic shutdown to prevent poor welds and protect the laser head from damage
Equipped with coaxial and air-knife blowing assembly, ensuring non-destructive collisions and rapid recovery
Full-body water cooling minimizes the effects of temperature rise, ensuring reliable long-term performance
