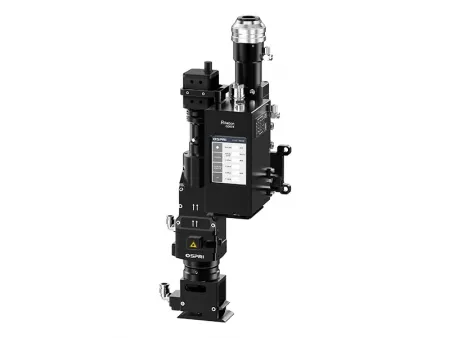

3KW Dual-Axis Wobble Laser Welding Head
LWD03B0
Fiber laser welding head for processing various metals with power ratings of up to 3kW
LWD03B0
Fiber laser welding head for processing various metals with power ratings of up to 3kW
The 3kW double swing fiber laser welding head is designed for low-power applications where precision, consistency, and efficiency are crucial. Its compact latch-type structure and built-in collision protection simplify maintenance while ensuring safety during operation. A fully water-cooled body combined with a proprietary thermal insulation layer delivers superior heat dissipation, enabling long-term stable performance without overheating.
| Model | LWD03B0 |
| Rated Power | ≤3kW |
| Wavelength | 1080nm±10nm |
| Collimation Length | 100mm |
| Focal Length | 200mm/250mm/300mm |
| Scanning Range | X: 0~5mm Y: 0~5mm |
| Wobble Speed | 3500mm/s |
| Auxiliary Gas Pressure | ≤1MPa |
| Weight | 2.4kg~3.6kg |
Ideal for 3kW low-power fiber laser welding, this double-swing wobble welding head supports stainless steel, carbon steel, copper, and aluminum alloy processing. The dual-axis wobble motion enhances seam quality, reduces defects, and improves adaptability to different joint configurations, making it suitable for industries that demand both precision and durability.
Snap-fit latch design simplifies servicing and reduces downtime
Equipped with coaxial / air-knife blowing assembly, the head safeguards the optics from impact, allowing non-destructive collisions and rapid recovery for continuous operation.
Full-body water-cooling system ensures long-term stable performance
Innovative insulation layer minimizes temperature rise and resists reflected heat
Newly integrated coaxial scale allows fine and accurate adjustments
