15KW Dual-Axis Wobble Laser Welding Head (with Air-Knife)
LWD15A0
Fiber laser welding head for processing various metals with power ratings ranging from 6kW to 15kW
LWD15A0
Fiber laser welding head for processing various metals with power ratings ranging from 6kW to 15kW
This high-power dual-axis wobble welding head is built for demanding industrial applications. It features a full-body water-cooling system combined with an innovative thermal barrier layer to ensure effective heat dissipation and long-term stable operation, even under continuous heavy-duty use. Its collision protection design minimizes downtime by enabling rapid recovery after accidental impacts, ensuring uninterrupted production.
| Model | LWD15A0 |
| Rated Power | 15kW |
| Wavelength | 1080nm±10nm |
| Collimation Length | 75mm/100mm/125mm/150mm |
| Focal Length | 200mm/250mm/300mm |
| Wobble Speed | 4000mm/s |
| Scanning Range | X: 0~5mm / Y: 0~5mm |
| Trajectory Frequency | 1500Hz |
| Weight | 12.6kg |
The dual-axis wobble laser welding head supports high-power welding, with power ratings ranging from 6kW to 15kW. It is suitable for processing stainless steel, carbon steel, copper, and aluminum alloys, delivering strong, precise, and consistent welds for a wide range of metal fabrication industries.

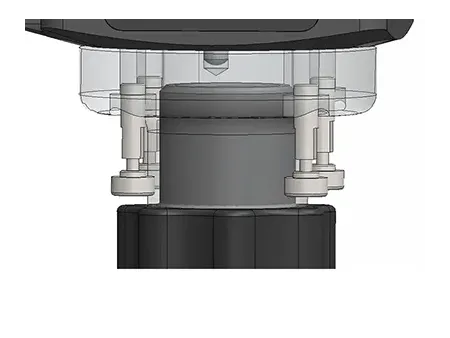

Equipped with coaxial / air-knife blowing assembly, the head safeguards the optics from impact, allowing non-destructive collisions and rapid recovery for continuous operation.
Full-body water-cooling system ensures long-term stable performance
Innovative insulation layer minimizes temperature rise and resists reflected heat
