Template Slicing Machine

Request a Quote

View All: http://hiwellmachinery.com/2-2-5-template-slicing-machine.html

MQJ300-II

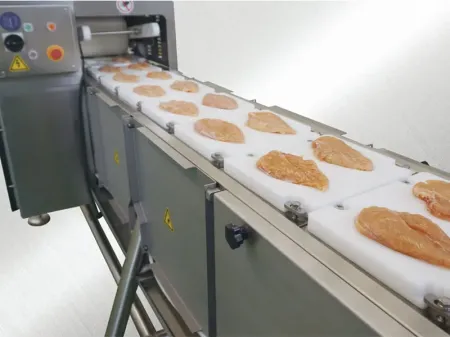

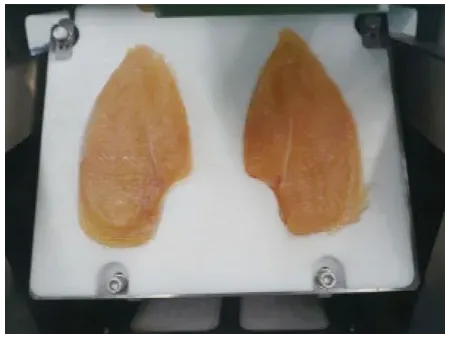

Template slicing machine, suitable to process poultry products and fish, is designed to produce products of identical shapes and portions by flattening and slicing the fresh meat placed in the template, removing the unwanted, and finally producing the meat products.

Features

Template slicing machine slices the meat horizontally and cutting off the unwanted part;

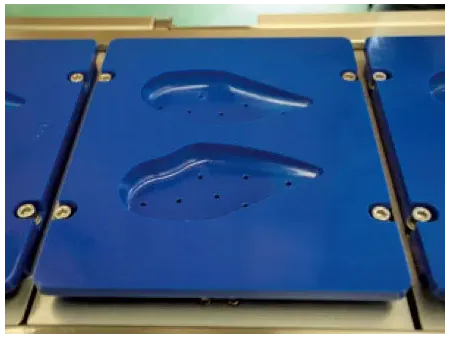

Different shapes and portions of meat can be gained by replacing different templates;
Automatically removing the unwanted part from the finished products;
Easy to change the templates;
Precision of cutting within ≤4%;
Equipped with the electrical components of SIEMENS, which have safety devices and meet the CE standards;
This template slicing machine is made of stainless steel and engineering plastics that are easy to clean and meet the HACCP requirements;
Easy operation and reduced maintenance costs;

Technical Parameters

Template width	300×254mm (single/double lanes)
Slicing speed (product width≤140mm)	Single lane 62pcs/min Double lanes 124pcs/min
Cutting precision	≤4%
Input / output Height	1050±50mm
Power	1.21kW
Overall dimensions	4220×1120×1360mm
