NF32K

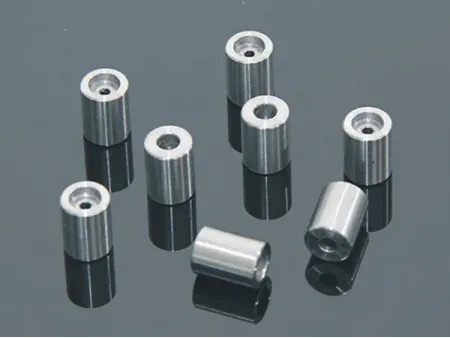

This is a high-efficiency, high-precision two-axis horizontal CNC lathe designed for complex turning tasks on disc parts and short shaft components. It supports internal and external cylindrical turning, taper turning, step and spherical surfaces, rotational contours, internal and external grooving, drilling and tapping. The gang-tool layout is optimized for parts that do not require tailstock support, making it ideal for disc components and short shafts.
Features
- The integrated 45° slant bed provides high rigidity and strong vibration damping, ensuring stable and reliable machining performance.
- Large-specification linear guideways on both axes deliver high stiffness and excellent dynamic behavior, maintaining long-term machining accuracy.
- The spindle is driven by a servo motor with stepless speed control from 100 to 5000 r/min, allowing flexible speed adjustments in programming.

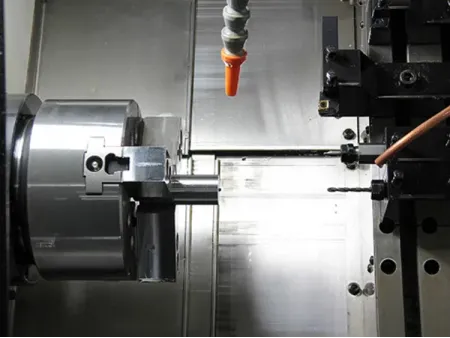

- The simple, fast-indexing gang-tool layout supports quick tool changes and reduces non-cutting time.
- The mechanical, electrical and hydraulic design integrated into one system with full-enclosure guarding, clean layout and ergonomic structure support easy operation, maintenance and reliable performance.
- Compatible with CNC systems from GSK, Syntec and FANUC to meet various application and automation requirements.
Technical Specifications
| Max. swing over bed (mm) | 360 |
| Max. swing over carriage (mm) | 100 |
| Z-axis guideway span (mm) | 380 |
| X-axis guideway span (mm) | 200 |
| Spindle nose type | A2-5 |
| Spindle bore diameter (mm) | 56 |
| Front spindle bearing inner diameter (mm) | 90 |
| Max. bar diameter (mm) | 42 |
| Spindle speed (r/min) | 100-5000 |
| X-axis travel (mm) | 340 |
| Z-axis travel (mm) | 260 |
| X-axis rapid traverse (m/min) | 13 |
| Z-axis rapid traverse (m/min) | 15 |
| Tooling type | Gang tooling |
| OD turning tool shank size (mm) | 16×16 |
| Max. boring bar diameter (mm) | 20 |
| Machine dimensions (L×W×H) (mm) | 2050×1450×1550 |
| Machine weight (net/gross) (kg) | 2200/2500 |
