4 Axis CNC Wood Lathe
//Woodworking Machinery
CNC machining center with 4 interpolated axes for turning, milling, drilling, mortising and sanding of solid wood elements
- Max. working length1000mm
- Max. working diameter120mm
- Machine dimensions3100×1800×1850mm
- Machine weight3300kg

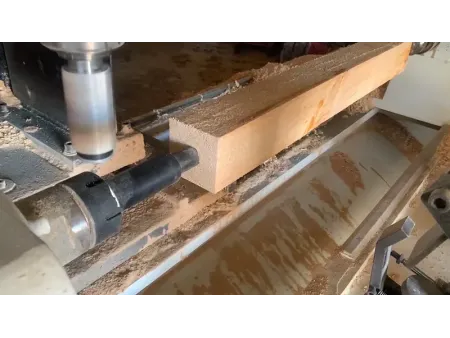

Our 4-axis CNC wood lathes are designed to handle turning, milling, drilling, mortising, and sanding of solid wood components with precision and efficiency. With three linear axes (X, Y, Z) and one rotary axis working in perfect synchronization, they allow for accurate and smooth shaping of complex surfaces and detailed contours. These woodworking machines make it easy to produce intricate curved profiles and high-quality finished parts, offering the flexibility needed to meet the demands of diverse wood processing applications.
Our 4-axis CNC wood lathes handle milling, drilling, slotting, and sanding for solid wood components in furniture production. Perfect for processing chair legs, chair backs, and armrests, they deliver precise shaping and smooth finishes to meet the needs of high-quality woodworking.
| Parts | Brand | Type | Power |
| Control system | NEWKer | CNC990TDB | 100W |
| X-axis ball screw | TBI Motion | 2510 | |
| Z-axis ball screw | TBI Motion | 3210 | |
| Y-axis ball screw | TBI Motion | 2510 | |
| X-axis servo motor | Haide servo | 110 servo motor | 1.2kW×4pcs |
| Z-axis servo motor | Haide servo | 110 servo motor | 1.2kW×6pcs |
| Y-axis servo motor | Haide servo | 110 servo motor | 1.2kW×6pcs |
| X-axis guide rail | Dinghan | 25 guide rail | |
| Z-axis guide rail | Dinghan | 25 guide rail | |
| Y-axis guide rail | Dinghan | 25 guide rail | |
| Index spindle power | Jitaike | 4kW | |
| Index spindle drive | Jitaike | 4kW | |
| T3 shaping | Tianyi | 12000rpm | 7.5kW |
| T4 drilling | Tianyi | 18000rpm | 6kW |

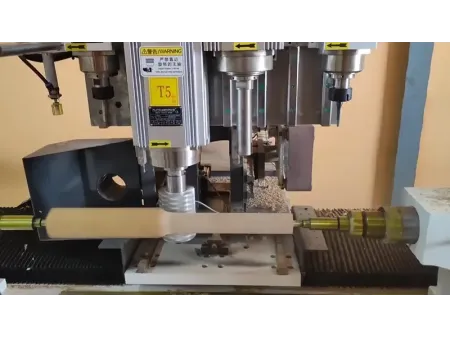

| T5 mortising | Tianyi | 18000rpm | 6kW |
| T6 milling (reversal) | Tianyi | 12000rpm | 7.5kW |
| Max. working length | 1000mm | ||
| Max. working diameter | 120mm | ||
| Machine dimensions | 3100×1800×1850mm | ||
| Machine weight | 3300kg |
- Equipped with a standard CNC control system supporting G-code, ensuring compatibility and ease of programming for diverse wood processing applications.
- The spindle box and tailstock are crafted from integrated castings made with resin sand, and undergo high-temperature annealing after casting to enhance stability. This design ensures long-term durability, high rigidity, and minimizes deformation over time. Each lathe weighs approximately 2.4 tons, contributing to its structural stability.
- The X, Z, Y, and A axes are driven by servo motors that precisely execute system commands. This setup guarantees dimensional accuracy, fast processing speeds, and achieves rapid traverse speeds of up to 20 meters per minute. The lathe includes an automatic overload alarm to protect against potential issues.
- All sliding blocks are equipped with flanged designs to reduce tool vibration, especially when processing high-volume workpieces. This results in smoother surfaces and minimizes tool marks, making post-processing and sanding much easier.
- The spindle features stepless automatic speed adjustment, with programming control for spindle speed and an integrated braking system. The brake system can stop the spindle in just 1.2 seconds, adding to operational efficiency and safety.
Our team is ready to help you choose the right equipment and configuration.
