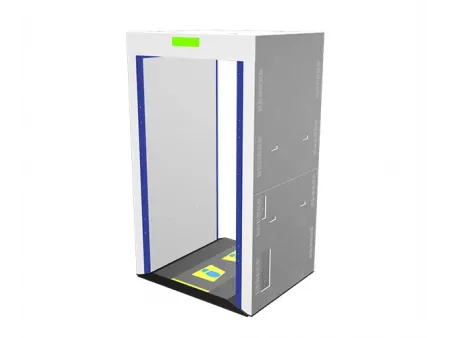

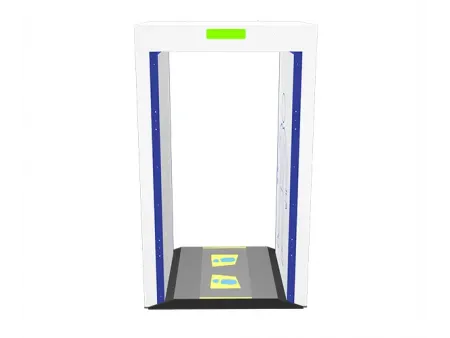

Human Body Security Scanner (with Top)
HBS-7801 Millimeter Wave Scanners
Millimeter wave body scanner utilizing millimeter waves for detecting dangerous items concealed underneath clothing
HBS-7801 human body security scanner uses Microcreative independently developed 80GHz millimeter wave chips together with 2D MIMO scanning technology to image the human body. Combining Al technology, the full body scanner can identify the suspicious objects hidden under the clothes automatically, whether metal or non-metal, it realizes the non-contact security screening for human body. Thanks to the 2D MIMO scanning technology, this millimeter wave security scanner has faster scanning speed, higher resolution and detection rate, and its unique barrier-free pass design offers a better feeling for the inspected person.
HBS-7801 human body security scanner holds the certification from Civil Aviation Administration of China (CAAC) A2 level. It can meet the security screening requirement of different customers.
| Item | Specification | Remarks |
| Operating Frequency | 71–81 GHz | / |
| Detectable Height Range | 0.1–2.2 m | Lowest–highest height |
| Detectable Width | 1 m | / |
| Spatial Resolution | 1 mm | / |
| Scan Duration | 0.29s | / |
| Inspection Cycle | 4 s | / |
| Noise Level | ≤55 dB | Measured between the two side panels |
| Outer Dimensions | 2537 × 1720 × 1498 mm | Height × depth × width |
| Passage Width | 1120 mm | Accessories not included |
| Operating Temperature | 0–40 °C | Valid operating range |
| Operating Humidity | ≤80% RH | Relative humidity |
| Input Voltage | 200–240 V AC (±10%) | Requires protective grounding |
| Overall Size | 2537 × 1249 × 1498 mm (H × D × W) | / |
| Outer Dimensions (with Base) | 2537 × 1720 × 1498 mm (H × D × W) | / |
| Weight | 600 kg | / |
The 14th China International Aviation & Aerospace Exhibition
The 14th China International Aviation & Aerospace Exhibition opened on November 8, 2022, at the Zhuhai International Airshow Center. Our independently developed millimeter-wave body scanner was used for personnel screening throughout the event. Its stable performance and accurate detection helped ensure smooth entry operations and contributed to the safe and successful running of the exhibition.
These human body security scanners are widely used in places where security needs to be a bit stricter, such as airports, metro stations, customs checkpoints, or any area that handles sensitive traffic. They help keep the flow moving while still spotting anything hidden under clothing, whether it’s metal or not. The scanner highlights the exact spot where an item is hidden, helping staff check it quickly and keep the area safe without slowing the flow of people.
- Large Events
- Metro Stations
- Airports
- Customs & Border Control
- Hospitals
- Rail Transit Hubs
- Special Venues
- Firearms
- Knives
- Liquids
- Powders
- Ceramic knives
- Lighters
- Gasoline
- Cigarettes
- Ammunition
- Fast Scanning
The 2D MIMO array lets the scanners complete a full-body check in as little as 0.1 seconds, with a clear 2 mm resolution. - High Precision
The imaging performance reaches 2 mm × 2 mm, helping identify small concealed items with reliable detail. - Low-Maintenance Design
Electronic scanning means there are no moving parts, so the scanners don’t need calibration and daily upkeep stays simple. - Barrier-Free Access
A 1.12 m wide passage gives people more room to walk through comfortably. - Comfortable Screening Experience
People can just keep their arms relaxed at their sides during the scan, so the whole process feels more natural and comfortable. - Optional Add-Ons
Foot metal detection can be added if it is necessary.
- Metal Foot Scanner
- Active Millimeter-Wave Transceiver Array
- Display module
- ISO 9001
- ISO26262
- HBS-7801D - CAAC Security Inspection Equipment Use Permit – A2 Level
