Walk-Through Security Scanner
HBS-1310 Millimeter Wave Scanners
Millimeter wave body scanner utilizing millimeter wave to detect concealed objects under clothing, with a screening capacity up to 1,200 people per hour
The walkthrough scanner is designed for high passenger flow places where screening has to stay fast, contact-free and smooth. The full body scanner uses an active millimeter wave transceiver array to transmit and receive millimeter wave signals in real time, it can realize 360° whole-body scanning of the detected person. This security scanner uses millimeter wave imaging and Al algorithm to locate the position of prohibited objects quickly on human body. It can display the contraband in real-time with video images.
The scanner uses modular digital beamforming technology, it can achieve rapid installation on-site without calibration.
Dimension

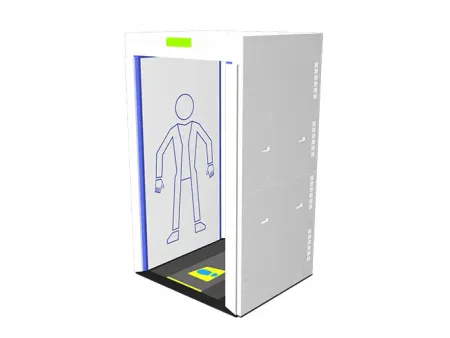

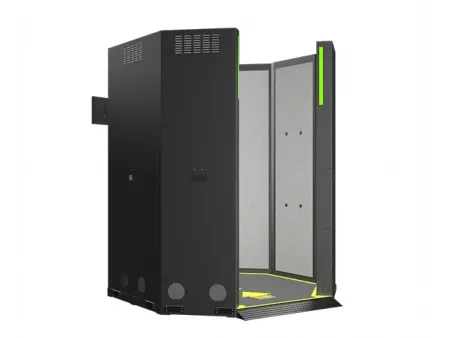

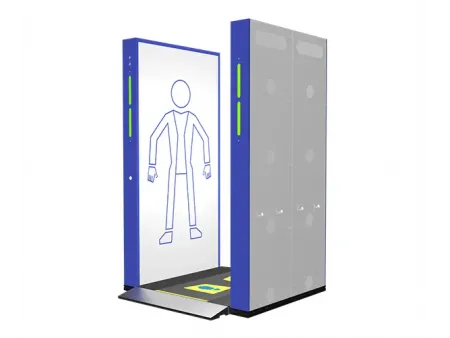

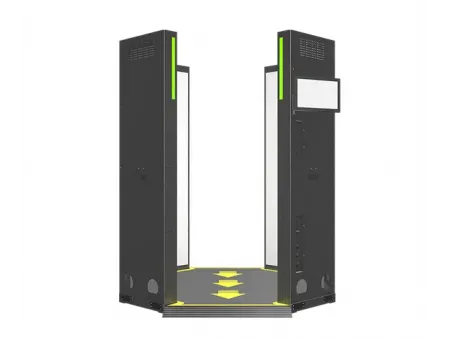

- Single-unit Size 1500 mm × 425 mm × 1800 mm (W × L × H)
- Full-system Size 1500 mm × 1500 mm × 1800 mm (W × L × H)
- Product Weight 450 kg
Technical Parameters
- Core Chipset In-house developed RF and processing chipsets
- Operating Principle Active millimeter-wave imaging
- Imaging Array Multi-angle folded array
- Scan Time <15 ms
- Spatial Resolution 10 mm
- Line Resolution 5 mm
- Imaging Frame Rate 10 fps
Operating Parameters
- Throughput 1200 people/hour
- Operating Voltage 200 V–240 V, 50 Hz/60 Hz
- Safety Current 10 A
- Rated Power 1500 W
- Standby Power 500 W
- Operating Temperature 0–40°C
- Operating Humidity <90%, non-condensing
Ürümqi Tianshan International Airport
15th National Games of China
The walk-through millimeter-wave security scanner is used at entrances of metro and high-speed railway stations, hospitals, customs and border-control facilities, major events, and other sites that require efficient, non-contact screening at high passenger flow places.
- Large Events
- Metro Stations
- Airports
- Customs & Border Control
- Hospitals
- Rail Transit Hubs
- Special Venues
- Firearms
- Knives over 9 cm in length
- Bottled liquids over 100 ml
- Ceramic knives with a blade length over 9 cm
- Flammable or explosive liquids over 100 ml, such as gasoline
- Axes
- Walk-Through Screening
People pass through at a normal pace while the system completes the scan without requiring them to stop. - High Detection Accuracy
The scanner uses Microcreative independently developed N-series millimeter wave chips to achieve millimeter-level detection accuracy, it can detect prohibited objects and position them more accurately. - Effective for a large passenger flow
Non-contact, non-stay large flow security screening, up to 1,000 people/hour during peak hours. - Full-Body Coverage
The active millimeter-wave transmit–receive array scans the entire body in 360°, ensuring no blind spots. - Intelligent Threat Marking
Millimeter-wave imaging works together with AI-based recognition to pinpoint the exact location of detected items, showing results clearly alongside the video view. - Fast On-Site Deployment
The modular structure allows quick installation with no calibration required at the site.
Key Advantages Over Terahertz Security Screening Gates
| Comparison Item | ||
| HBS-1310 Walk-Through Security Scanner | Terahertz Security Body Scanner | |
| Detection Type | Walk-through (open passage) | Semi-enclosed passage |
| Spatial Resolution | 10 mm | 25 mm |
| Scan Speed | 10 fps | 10 fps |
| Operating Temperature | 0°C to 40°C | 0°C to 35°C |
| Throughput Capacity | 1,200 people/hour | 1,200 people/hour |
| Equipment Footprint | Small | Large |
| Power Consumption | 1500 W | 4000 W |
| Imaging Mode | 360° full-body imaging | 2D imaging |
Advantages Over Metal Detection Gates
| Comparison Item | ||
| HBS-1310 Walk-Through Security Scanner | Metal Detection Gate | |
| Types of Prohibited Items Detected | Liquids, metals, semiconductors, plastics, gels, ceramics, composite materials and other contraband items | Metals |
| Contraband Localization | Automatic detection with precise location marking | Unable to locate items |
| Target Recognition | Deep-learning-based target identification | Not supported |
| Image Display | Supported | Not supported |
| Data Linking / Integration | Supported | Not supported |
- Active millimeter-wave transmit–receive array
- Display module
