PV DC fuse holders provide advanced and affordable protection for residential and commercial solar systems. Our photovoltaic fuse holders suit 1000V and 1500V DC needs. With patented dual-core design (patent number: ZL 2016 1 0673892.0) and CE/TUV certifications, these PV fuse holders integrate smoothly into solar setups. Our automatic production ensures 800,000 high-quality units yearly and 80% of automatic production, shortening lead times for bulk orders and optimizing pricing. Contact our team for swift support!

ARD-32(X)/1000
ARD-32X2/1100
ARD-32/1500-N
ARD-32X2/1500-65
ARD-32B(X)/1500

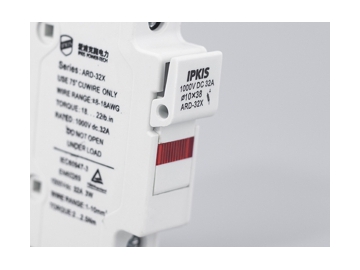

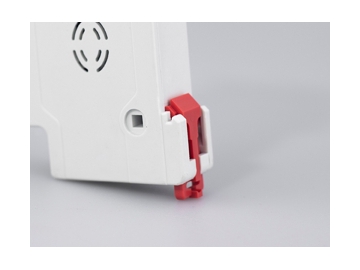

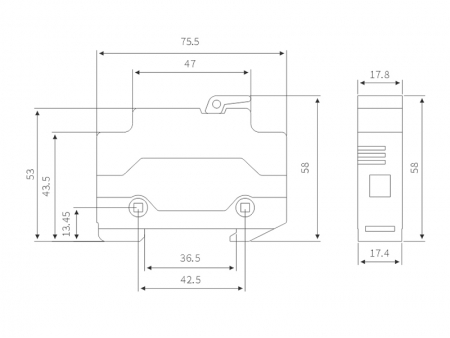

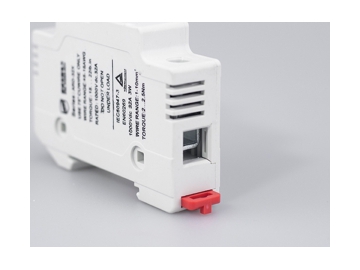

PV Fuse Holder, ARD-32(X)/1000

Rated Voltage: 1000V, DC
Rated Current: 32A
Compatible Fuse Size: 10*38mm
Protection Classification: gPV
Enclosure Material: PBT
Temperature Resistance: -40 to 120°C
Enclosure Flame Rating: UL94-V0
Installation Support: Mounting Rail
Mounting Rail Size: TH35
Terminal Screw Torque: 2.5～3N.m
Conductor Cross-Section: 2.5～16mm²
Ipk Rated Peak Withstand Current: 20kA
Certification: TUV, CE, RoHS
Protective Treatment: TH
Storage Temperature: -40°C to 80°C
Standards: GB14048, IEC60269
Optional Feature: LED Indicator

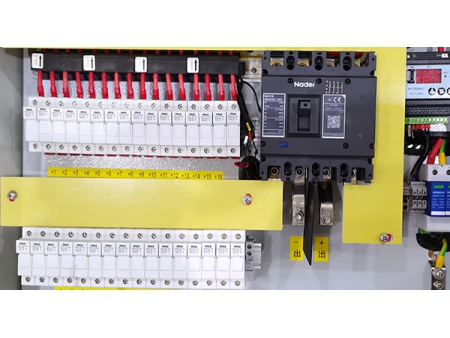

PV Fuse Holder in Operation

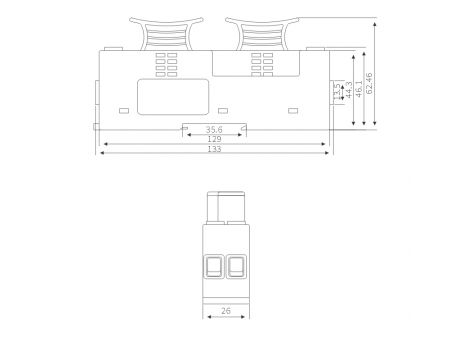

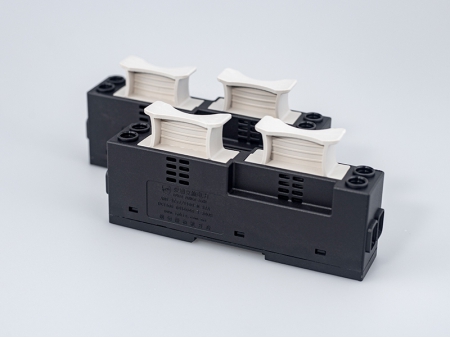

PV Fuse Holder, ARD-32X2/1100

Rated Voltage: 1100V, DC
Rated Current: 32A
Compatible Fuse Size: 10*38mm
Protection Classification: gPV
Enclosure Material: PA66
Temperature Resistance: -40 to 120°C
Enclosure Flame Rating: UL94-V0
Installation Support: Mounting Rail
Mounting Rail Size: TH35
Terminal Screw Torque: 2.5～3N.m
Conductor Cross-Section: 2.5～16mm²
Ipk Rated Peak Withstand Current: 20kA
Certification: TUV, CE, RoHS
Protective Treatment: TH
Storage Temperature: -40°C to 80°C
Standards: GB14048, IEC60269

PV Fuse Holder in Operation

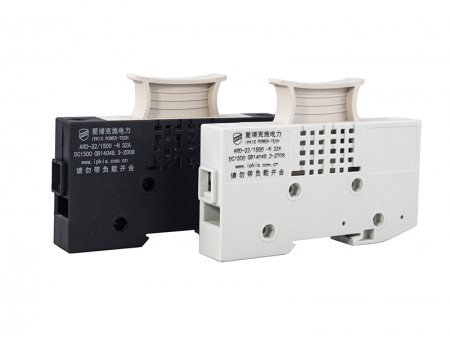

PV Fuse Holder, ARD-32/1500-N

Rated Voltage: 1500V, DC
Rated Current: 32A
Compatible Fuse Size: 10*65mm
Protection Classification: gPV
Enclosure Material: PA66
Temperature Resistance: -40 to 120°C
Enclosure Flame Rating: UL94-V0
Installation Support: Mounting Rail
Mounting Rail Size: TH35
Terminal Screw Torque: 2.5～3N.m
Conductor Cross-Section: 2.5～16mm²
Ipk Rated Peak Withstand Current: 20kA
Certification: TUV, CE, RoHS
Protective Treatment: TH
Storage Temperature: -40°C to 80°C
Standards: GB14048, IEC60269

PV Fuse Holder, ARD-32X2/1500-65

Rated Voltage: 1500V, DC
Rated Current: 32A
Compatible Fuse Size: 10*65mm
Protection Classification: gPV
Enclosure Material: PA66
Temperature Resistance: -40 to 120°C
Enclosure Flame Rating: UL94-V0
Installation Support: Mounting Rail
Mounting Rail Size: TH75
Terminal Screw Torque: 2.5～3N.m
Conductor Cross-Section: 2.5～16mm²
Ipk Rated Peak Withstand Current: 20kA
Certification: TUV, CE, RoHS
Protective Treatment: TH
Storage Temperature: -40°C to 80°C
Standards: GB14048, IEC60269

PV Fuse Holder, ARD-32B(X)/1500

Rated Voltage: 1500V, DC
Rated Current: 50A
Compatible Fuse Size: 10/14*85mm
Protection Classification: gPV
Enclosure Material: PA66
Temperature Resistance: -40 to 120°C
Enclosure Flame Rating: UL94-V0
Installation Support: Mounting Rail
Mounting Rail Size: TH35
Terminal Screw Torque: 2.5～3N.m
Conductor Cross-Section: 2.5～16mm²
Ipk Rated Peak Withstand Current: 20kA
Certification: TUV, CE, RoHS
Protective Treatment: TH
Storage Temperature: -40°C to 80°C
Standards: GB14048, IEC60269
