WD 12-cylinder V-Type High Speed Diesel Engine

Request a Quote

View All: http://highspeedengine.com/2-2-wd-12v-series-high-speed-diesel-engine.html

Industrial Diesel Engine
Power: 382-730 kW
rpm: 1500/1800

Features

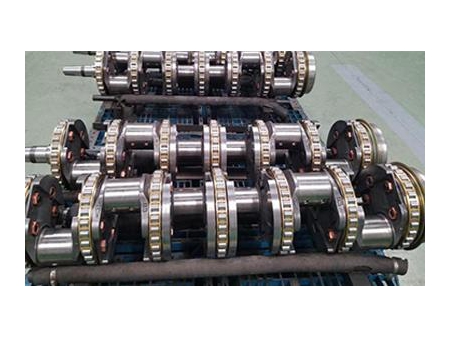

The assembled crankshaft features a high rigidity, high strength, excellent torque transmission and a compact design.
The turbocharge intercooler technology increases the diesel engine’s gas tightness and dynamic performance.

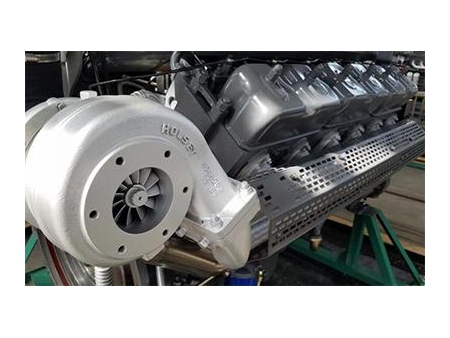

A low vortex and large flow cylinder head in combination with Bosch type-P fuel injection pump and Cummins Holset turbocharger allow for strict control of the highest combustion pressure and meet economical requirements, emission standards (GB20891) and noise standards (GB14097).
The plate-fin transmission oil cooler provides a better cooling performance.

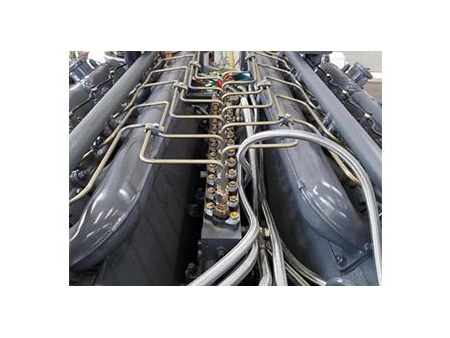

The fuel system uses an electron speed regulator to allow the diesel engine to easily connect to other devices in a parallel manner.
Standard flywheel housing/flywheel: SAE 0/14’’.

Parameters

Model	Cylinder Bore*Piston Stroke(mm)	Displacement (L)	Rated speed(r/min)	Rating(kW)	Standby (kW)	Minimum Fuel Consumption (g/kW.h)	Oil Consumption (g/kW•h)	Exhaust gas temperature(℃)
WD269TAD38	138×150	26.9	1500	382	420	198	≤0.67	≤600
WD269TAD41	138×150	26.9	1500	418	460	198	≤0.67	≤600
WD269TAD43	138×150	26.9	1500	432	475	198	≤0.67	≤600
WD269TAD45	138×150	26.9	1500	465	512	198	≤0.67	≤600
WD269TAD48	138×150	26.9	1500	482	530	198	≤0.67	≤600
WD269TAD50	138×150	26.9	1500	526	579	198	≤0.67	≤600
WD269TAD56	138×150	26.9	1500	562	618	198	≤0.67	≤600
WD287TAD58	138×160	28.7	1500	588	647	198	≤0.67	≤650
WD287TAD61	138×160	28.7	1500	628	691	198	≤0.67	≤650
WX287TAD68	138×160	28.7	1500	698	768	200	≤0.70	≤650

"*" Stands for average of SPL, based on GB/T2819-1995

Application

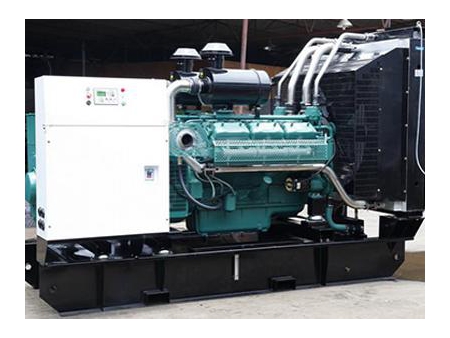

Open generator

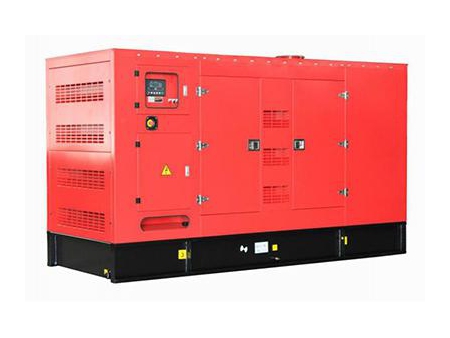

Silent generator

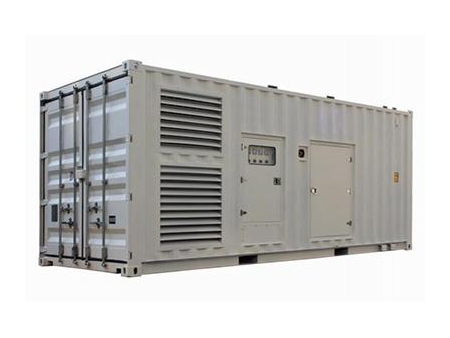

Container generator

Wuxi Power Engineering Co., Ltd. (Wandi) has more than six decades of experience in large marine and land diesel engines. Known for quality, durability and reliability, we are committed to the idea that every component, piece and part of the engine contributes to the overall performance. As a leader of high speed power solutions in China, we are able to offer the most extensive of high speed engines for power generation. Wandi diesel engines are specially designed for marine applications, which are widely used by many boating and marine industry manufacturers.
