LANDI 12-Cylinder V-Type High-speed Diesel Engine Manufacturer

LANDI 12-Cylinder V-Type High-speed Diesel Engine

Request a Quote

View All: http://highspeedengine.com/3-2-landi-12v-series-high-speed-diesel-engine.html

Industrial Diesel Engine
Power: 698-1338KW
rpm: 1500/1800

Features

Research & development based on AVL technology platform. CAE simulated analysis of the engine cylinder block, cylinder head, piston and other key parts.
Every cylinder head is equipped with a cover to extend the diesel engine’s service life.
A G POWER turbocharger and BOSCH fuel injection system are both used to improve the response speed, engine performance and service life, providing a quick supercharge within the working range.
Intelligent electronic control system with a complete range of functions.
The camshaft and roller rocker arms significantly improved the fuel economy and decrease friction levels.
The new cooling and lubrication system use a double pump and double oil cooler structure to enhance the cooling performance.
Low vibration and low noise.
Standard flywheel housing/flywheel: SAE0#14’/0#18’ optional

Parameters

Model	Cylinder Bore*Piston Stroke(mm)	Displacement (L)	Rated speed(r/min)	Rating(kW)	Minimum Fuel Consumption (g/kW.h)	Oil Consumption (g/kW•h)	Exhaust gas temperature(℃)
WD327TAD68	145×165	32.7	1500	698	196	≤0.48	≤650
WD327TAD73	145×165	32.7	1500	738	196	≤0.48	≤650
WD327TAD78	145×165	32.7	1500	788	196	≤0.48	≤650
WD327TAD82	145×165	32.7	1500	828	196	≤0.48	≤650
WD327TAD88	145×165	32.7	1500	898	196	≤0.48	≤650
WD327TAD92	145×165	32.7	1500	938	196	≤0.48	≤650
WD327TAD100	145×165	32.7	1500	1038	196	≤0.48	≤650
WD360TAD110	152×165	35.9	1500	1128	196	≤0.48	≤680
WD360TAD120	152×165	35.9	1500	1218	196	≤0.48	≤680
WD360TAD130	152×165	35.9	1500	1308	196	≤0.48	≤680

"*" Stands for average of SPL, based on GB/T2819-1995

Video

Application

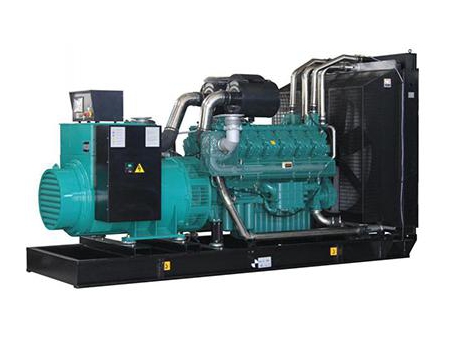

Open generator

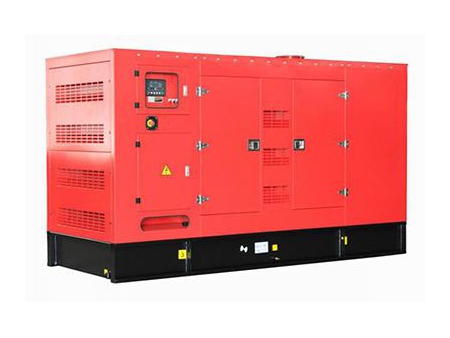

Silent generator

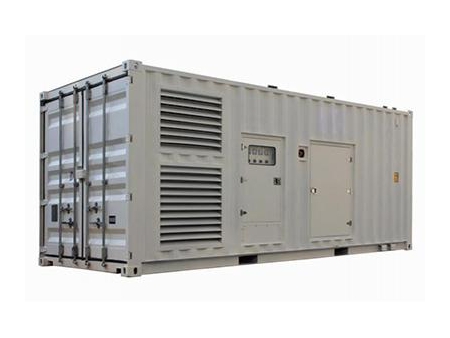

Container generator

Wuxi Power Engineering Co., Ltd. (Wandi) has more than six decades of experience in large marine and land diesel engines. Known for quality, durability and reliability, we are committed to the idea that every component, piece and part of the engine contributes to the overall performance. As a leader of high speed power solutions in China, we are able to offer the most extensive of high speed engines for power generation. Wandi diesel engines are specially designed for marine applications, which are widely used by many boating and marine industry manufacturers.
