CO2 Laser marker
Series CO2-10W/ 30W/ 50W/ 100W
Application

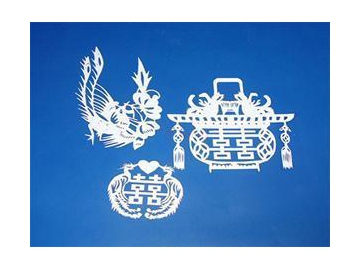

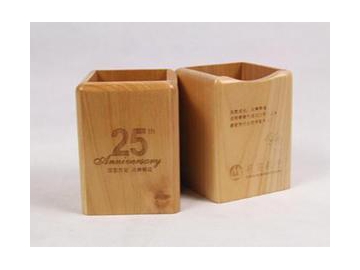

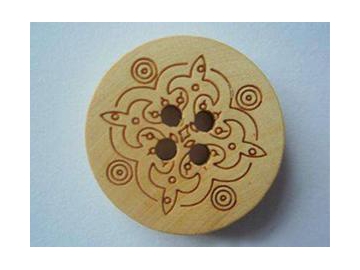

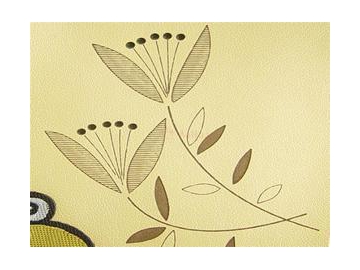

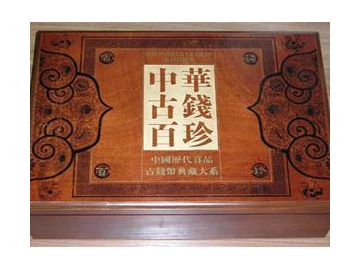

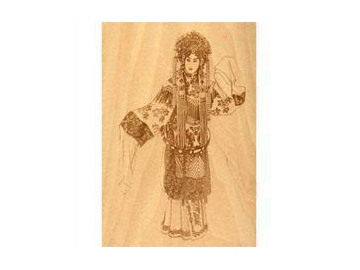

The CO2 laser marking machine is used for marking non-metal materials such as clothing, leather, organic glass, epoxy resin, acrylic, unsaturated resin, process gifts, wood, textiles, plastics, signs, electronic communications, watches, glasses, printing, and decorations.
| Model | | | ||
| Max. power | 10W | 30W | 50W | 100W |
| Laser wavelength | 10.64um | 10.64um | 10.64um | 10.64um |
| Repetition frequency | ≤50KHZ | ≤50KHZ | ≤50KHZ | ≤50KHZ |
| Standard marking range | 100mm*100mm | 100*100mm | 100*100mm | 100*100mm |
| Optional engraving range | 50*50mm/150*150mm | 50*50mm/150*150mm | 50*50mm/150*150mm | 50*50mm/150*150mm |
| Engraving depth | ≤3mm | ≤5mm | ≤7mm | ≤10mm |
| Engraving linear speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s |
| Min. line width | 0.1mm | 0.1mm | 0.15mm | 0.15mm |
| Repetition accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Min character | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
| Power consumption | ≤300W | ≤1.2KW | ≤2KW | ≤4KW |
| Cooling style | Air cooling | air cooling | water cooling | water cooling |
| Electrical connection | 220V+10%/50HZ/10A | 220V+10%/50HZ/10A | 220V+10%/50HZ/30A | 220V+10%/50HZ/30A |
Feature
● The CO2 laser marking machine uses an original American laser that is stable and features a low error rate, which in turn lengthens the service life up to 250,000 hours with minimal usage and maintenance costs.
● The industrial control computer is ideal for long periods of operation in industrial environments, and the software features the ability to carry out precision marking calculations in order to print bar codes and other graphic codes.
● With an optimized wind/water cooling system, the laser tube is convenient to use and features a long service life.
