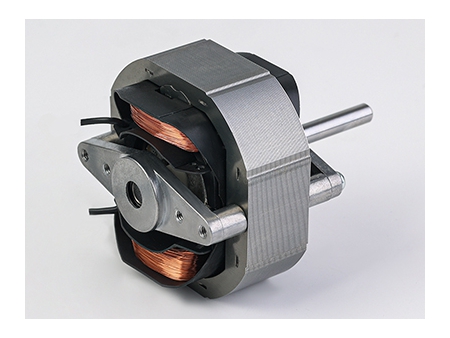

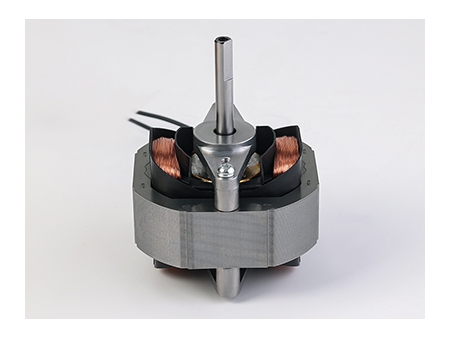

YJ 80 O-Frame Shaded Pole Motor
Request a Quote
YJ 80 O-frame shaded pole motor is a 2 pole 2 speed motor that will run on 100-120V AC, 220-240V AC or 127/230V AC. It is widely used in ventilation systems like ventilating fans, exhaust fans and pipeline fans.
We also offer custom services like motor design and construction, optional configuration and logo printing.
Diagram
Certifications
Application
YJ80(2P) shaded pole motor is widely used in duct fans and mixed flow plastic fans of various sizes required in apartment, commercial buildings and industrial plants.
Parameters
| Type | Voltage/Freq. VAC | Current A | Power W | Speed r/min | Rotation | Shaft dia mm | Stator Thickness (T) mm | Shaft Extension (B) mm | Certificate |
| YJ80-25 | 220-240V 50Hz | 0.25 | 36 | 2450 | CW/CCW | 7 | 25 | < 90 | CE,CCC |
| 0.15 | 24 | 2050 | |||||||
| 110-120V 60Hz | 0.75 | 56 | 2400 | CW/CCW | 7 | 25 | < 90 | ||
| 0.59 | 45 | 2000 | |||||||
| 220V/127V 60Hz | 0.30 | 40 | 3480 | CW/CCW | 7 | 25 | < 90 | ||
| 0.60 | 40 | 3480 |
