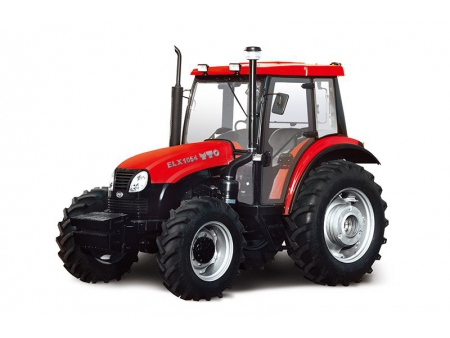

Utility Tractor, 80-115HP
Request a Quote
YTO-NLX854 / NLX954 / NLX1024 / NLX1054 / NLY1154E / EX800 / ELX954H
Features
- The series of tractors perform well in farming chores and transportation with its large traction force;
- The 4-cylinder diesel engine produces high horsepower with less fuel;
- 12F/4R gears allow for a wide speed range to handle multi-tasks;
- Double action clutches separately control driven wheels and PTO, which improves productivity;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The hydraulic disc brake offers the advantage of better stopping power and consistent braking performance;
- The enclosed cab provides operators a wide view and a comfortable experience with optional cooling and heating systems;
- Gear shifting synchronizers, a lifter with draft and position adjustment devices and air brake systems are optional.
- Enclosed cab

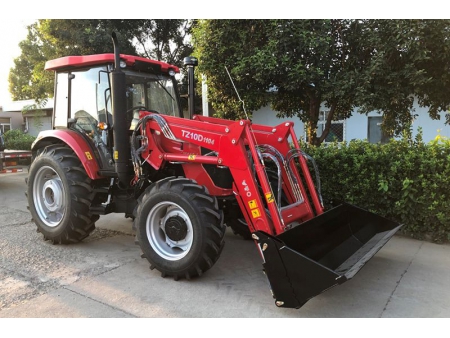

- Front loader
- Wide view
- Rear suspension
Specifications
| Model | NLX854 | NLX954 | NLX1024 | NLX1054 | NLY1154E | EX800 (sunshade) | EX954H |
| Driving type | 4*4 | 4*2 | 4*4 | ||||
| Engine type | Naturally aspirated 4-cylinder diesel engine | 4-cylinder turbocharged diesel engine | Naturally aspirated 4-cylinder diesel engine | ||||
| Rated engine HP (kW) kW (HP) | 62.5 (85) | 70 (95) | 76 (102) | 77.2 (105) | 84.5 (115) | 59 (80) | 70 (95) |
| Engine speed (rpm) | 2300 | ||||||
| Clutch | Independent, double action | ||||||
| Gears | 12F/4R (Options: 12F/12R or 24F/8R) | 12F/12R | 12F/4R (Options: 12F/12R) | ||||
| Speed range (km/h) | 1.64-26.97 | 1.65-27.17 | 2.17-36.7 | 2.28-36.9 | 1.9-31.7 | 1.29-21.20 | |
| Brake | Wet, disc | ||||||
| Rear PTO (rpm) | 540/1000 | ||||||
| Lift capacity (pivot point) (kN) | ≥23 | ||||||
| Hydraulic multiplier (set) | 1 or 2 or 3 | ||||||
| Dimensions (L*W*H) (mm) | 4350*2300*2765 | 3950*2170*2530 | 4080*2165*3025 | ||||
| Wheelbase (mm) | 2314 | 2342 | 2542 | ||||
| Ground clearance (mm) | 430 | 440 | 360 | 900 | |||
| Wheel track (F/R) (mm) | 1630-1960/ 1540-2120 | 1562-2000/1540-2120 | 1400-1900/1520-2120 | 1800/1800 | |||
| Min. turning radius (m) | 5.6±0.3 | 4.1±0.3 | 7±0.3 | ||||
| Tyre (F/R) | 11.2-28/ 16.9-34 | 13.6-24/16.9-34 | 7.50-16/16.9-30 | 12.4-54/12.4-54 | |||
| Min. operating mass (kg) | 3900 | 4100 | 3150 | 4830 | |||
