Utility Tractor, 97-115HP
Request a Quote
YTO-NLY954/NXY1054/NLY1154
Features
- The series of tractors deliver outstanding performance and provide comfortable driving experience and they can be used for field chores, transportation and engineering projects;
- The 4-cylinder diesel engine made by YTO that meets Euro V emission standard provides high horsepower with low fuel consumption;
- 12F/12R gears allow for a wide speed range to handle multi-tasks;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power;
- The ene-button design of electro-hydraulic PTO enables easy and convenient operation;
- The enclosed cab offers a wide view and comfortable experience with heating and cooling systems;
- Air brake systems are optional.

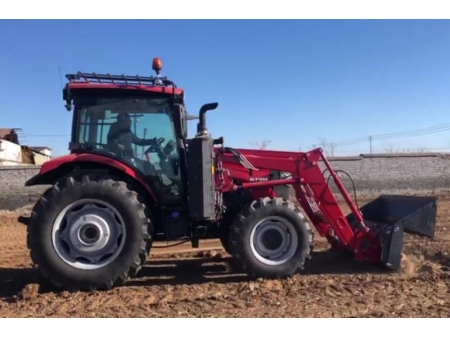

- Front loader

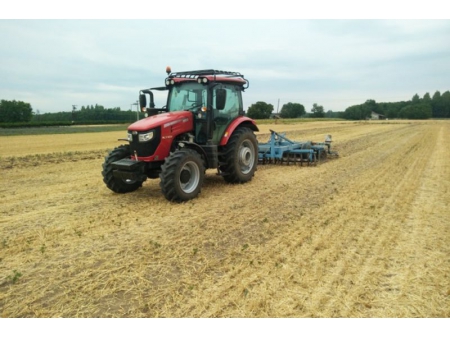

- Field chores
- Control console
- Comfortable driving experience
Specifications
| Model | NLY954* | NLY1054* | NLY1154* |
| Engine type | Naturally aspirated 4-cylinder diesel engine | ||
| Rated engine HP (kW) | 71.4 (97) | 77.9 (105) | 85.2 (115) |
| Engine speed (rpm) | 2200 | ||
| Clutch | single action | ||
| Gears | 12F/12R | ||
| Speed range (km/h) | 2.30-37.56 | ||
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥29 | ||
| Hydraulic multiplier (set) | 3 | ||
| Dimensions (L*W*H) (mm) | 4483*2200*2956 | ||
| Wheelbase (mm) | 2425 | ||
| Ground clearance (mm) | 420 | ||
| Wheel track (F/R) (mm) | 1655-1981/1540-2140 | ||
| Min. turning radius (m) | 4.5±0.3 | ||
| Tyre (F/R) | 340/85 R24: 420/85 R34 | ||
| Min. operating mass (kg) | 4400 | ||
Note: * Indicates E-mark certificate
