Application
Nano-PVDF aluminum composite building panel is highly resistant to water, fine dusts, and many other pollutes, so a self-cleaning character is obtained. Therefore, our nano-PVDF aluminum composite panel is widely applied in places where there are demanding requirement towards environment.

Features
Nano-PVDF aluminum composite building panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.

Parameters:
Specifications Of Aluminum Composite Panel
Normal Width 1220mm, 1250mm, 1500mm, 1570mm, 2000mm
Panel Thickness 2mm 3mm 4mm 5mm 6mm
Aluminum Alloy AA1100,AA3003,AA5005(Other Grade On Requirements)
Aluminum Skin Thickness 0.08mm ~ 0.60mm
Coating PE/PVDF/FEVE/NANO/Anti-scratch/Mill
PE Core Recycle PE Core/Fireproof PE Core/Unbreakable PE Core
Color Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed
Length 5800mm in maximum for 20ft container
Delivery 15 to 20 days after order confirmed and receiving deposit
MOQ 600 to 1000 m2 per color
Brand/OEM ALUWEDO®/ Customized
Payment Terms T/T/ L/C at sight/Western Union
Packing By bulk; In Wooden Package
Testing Item Standard Result
Unit Weight ASTM D792 T 4mm=5.5kg/m2
Thermal Expansion ASTM D696 24-28
Thermal Deformation Temperature ASTM D648 115 ℃
Thermal Conduction ASTM D976 0.102kcal/m.hr ℃
Flexural Rigidity ASTM D393 14.0*10^5
Impact Resistance ASTM D732 1.64kgf
Adhesive Strength ASTM D903 0.77kg/mm
Flexural Elasticity ASTM D790 4030kg/mm2
Shear Resistance ASTM D732 2.7kgf/mm2
Fire Propagation ASTM E84 Qualified
Wind-Pressure Resistant ASTM E330 Passed
Properties Against Water ASTM E331 Passed

Description

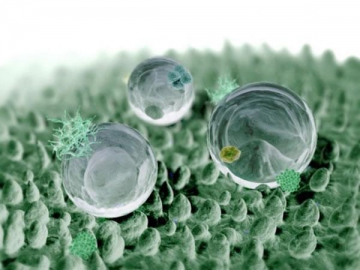

Nano-PVDF ACP utilizes new technology to change the surface molecular structure, which serves as a forth coating besides PVDF coating, thus to block dusts, water, permanent paint and other particles inside. In this way, both hydrophobicity and a hydrophilicity could be realized.

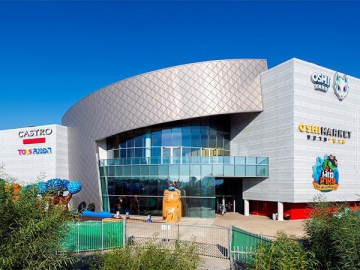

Aluwedo is a reliable Nano-PVDF aluminum composite building panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality Nano-PVDF coated ACP composite panels with competitive prices.
