Servo Driven Narrow Web Slitter Rewinder, DBGFQ-370
Request a Quote
Label converting machine
Daba Machinery presents the DBGFQ-370 servo driven narrow web slitter rewinder, with a cutting width range of 20mm to 350mm and a maximum cutting speed of 350 meters per minute. The narrow web slitter rewinder features full servo motor drive, automatic tension control system, high-quality guide rail system, and a turret non-stop rewinding system. This slitter rewinder is specifically designed for cutting narrow-web labels.
Applicable Materials

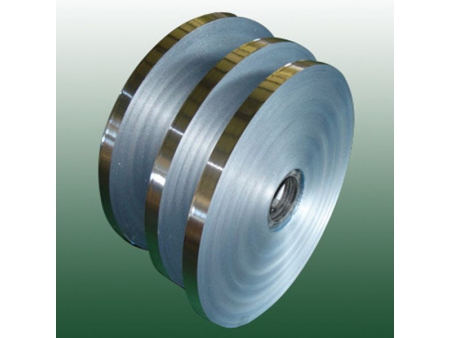

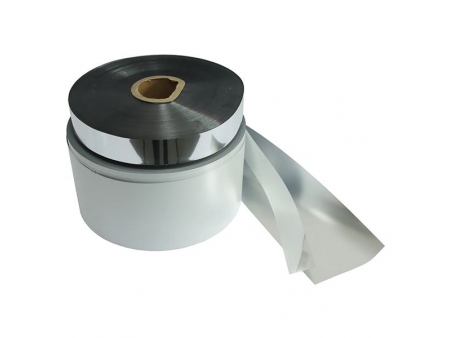

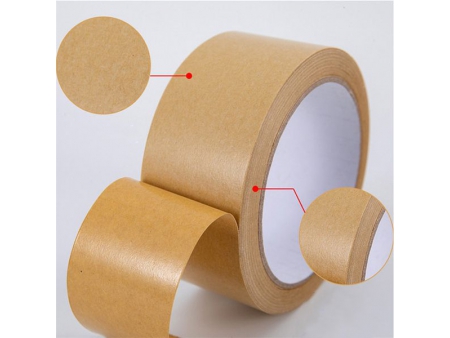

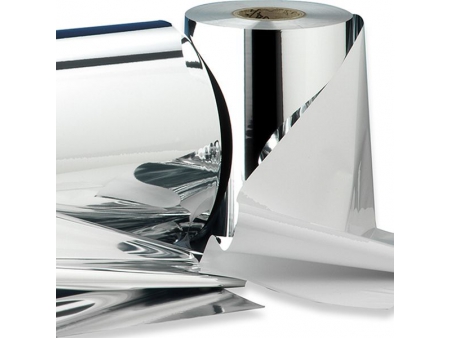

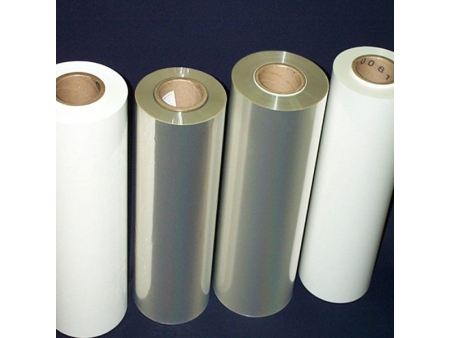

All narrow-web substrates, such as insulation materials, mica tapes, films, blank label paper, kraft paper, aluminum foil, and more.
Specifications
- Maximum Substrate Width: 370mm
- Maximum Slitting Width: 370mm
- Minimum Slitting Width: 20mm
- Maximum Slitting Speed: 350m/min
- Automatic Tension Control System: Yes
- Maximum Unwinding Diameter: 800mm
- Maximum Rewinding Diameter (Upper Rewinder): 450mm
- Maximum Rewinding Diameter: 800mm
- Slitter: Round/square optional
- Number of Slitters (Upper/Lower): 6 (standard)
- Number of Rewinders: 3
- Upper Rewinder: Turret style, equipped with four servo motor systems
- Guide Rail System: EURDOW (China)
- Dimensions (L*W*H): 2200*1350*1350mm
- Weight: 1300kg
Features
- The unwinding unit adopts a high-precision photoelectric correction system. Available for both automatic and manual control
- Automatic tension control system is equipped for unwinding and rewinding. Available for both tension feedback control and taper control.
- Available for round slitters and square slitters.
- The slitting machine has functions of automatic stop and length counting.
- Equipped with a trimming device with a blower disposing waste materials.
Details

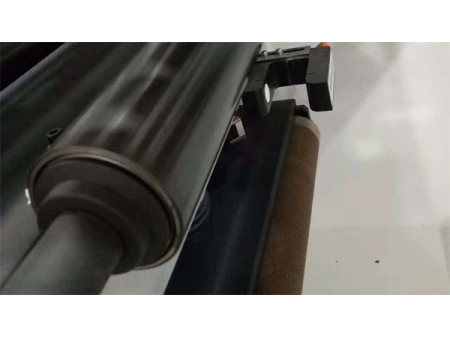

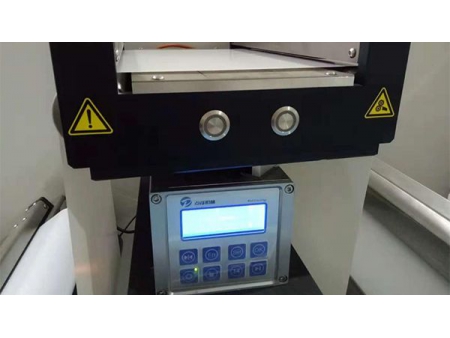

- High-precision Ultrasonic Correction
- Counter Sensor

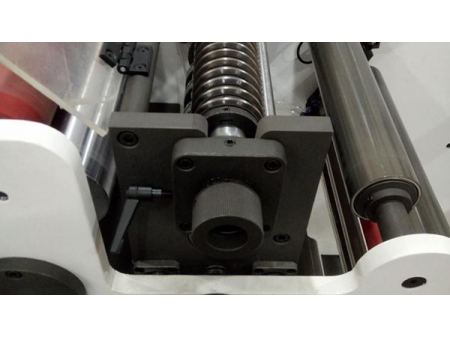

- Calibrated Scale and Knives Adjustment Device on the Auxiliary Roller in the Slitting Sation
- Schneider Components

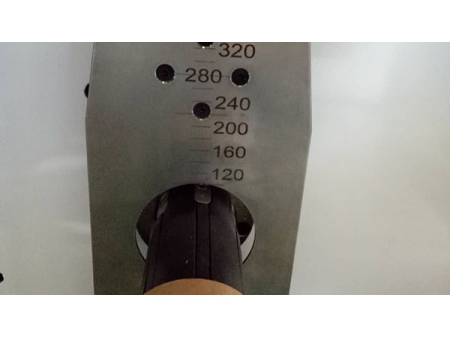

- Unwinder with Scale Markings

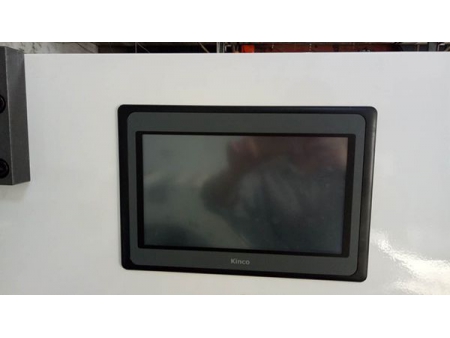

- Touch Control Panel
Optional

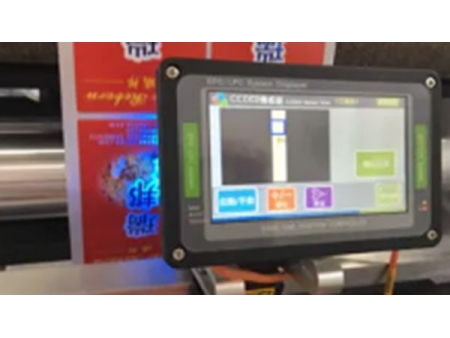

- PAUSOURCE (CCD)
Detection Range: 20mm
Accuracy: ±0.02mm - Square Slitter

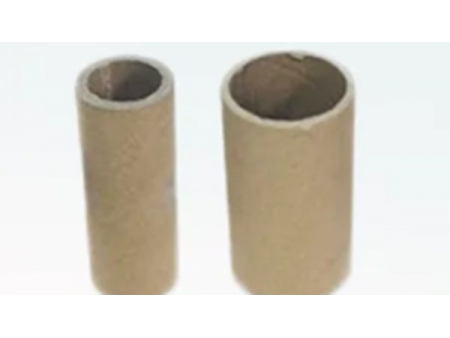

Thickness: 12mm - Rewinder
1-inch/2-inch
