EMT05 2 Flute Carbide Ball End Mill
Request a Quote
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
- Cutter Dia. down to 0.01mm
- Used for profile milling and slotting
- Chamfer design for easy installation
Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, 2 Flute Ball Nose - Regular Length, for Copy Milling (UNT-EMT05)

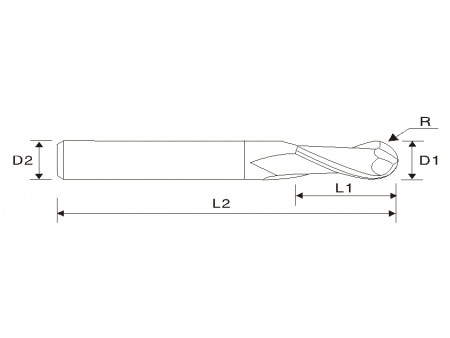

| UNT EDP # Click to Order | Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMT050103 | R0.5 | 1.0 | 3 | 2 | 50 | 2 |
| EMT050153 | R0.75 | 1.5 | 3 | 3 | 50 | 2 |
| EMT050203 | R1.0 | 2.0 | 3 | 4 | 50 | 2 |
| EMT050303 | R1.5 | 3.0 | 3 | 6 | 50 | 2 |
| EMT050034 | R0.15 | 0.3 | 4 | 0.6 | 50 | 2 |
| EMT050044 | R0.2 | 0.4 | 4 | 0.8 | 50 | 2 |
| EMT050054 | R0.25 | 0.5 | 4 | 1.0 | 50 | 2 |
| EMT050064 | R0.3 | 0.6 | 4 | 1.2 | 50 | 2 |
| EMT050074 | R0.35 | 0.7 | 4 | 1.4 | 50 | 2 |
| EMT050084 | R0.4 | 0.8 | 4 | 1.6 | 50 | 2 |
| EMT050094 | R0.45 | 0.9 | 4 | 1.8 | 50 | 2 |
| EMT050104 | R0.5 | 1.0 | 4 | 2 | 50 | 2 |
| EMT050124 | R0.6 | 1.2 | 4 | 2.4 | 50 | 2 |
| EMT050144 | R0.7 | 1.4 | 4 | 2.8 | 50 | 2 |
| EMT050164 | R0.8 | 1.6 | 4 | 3.2 | 50 | 2 |
| EMT050184 | R0.9 | 1.8 | 4 | 3.6 | 50 | 2 |
| EMT050154 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EMT050204 | R1.0 | 2.0 | 4 | 4 | 50 | 2 |
| EMT050254 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EMT050304 | R1.5 | 3.0 | 4 | 6 | 50 | 2 |
| EMT050404 | R2.0 | 4.0 | 4 | 8 | 50 | 2 |
| EMT050106 | R0.5 | 1.0 | 6 | 2 | 50 | 2 |
| EMT050156 | R0.75 | 1.5 | 6 | 3 | 50 | 2 |
| EMT050206 | R1.0 | 2.0 | 6 | 4 | 50 | 2 |
| EMT050256 | R1.25 | 2.5 | 6 | 5 | 50 | 2 |
| EMT050306 | R1.5 | 3.0 | 6 | 6 | 50 | 2 |
| EMT050406 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMT050500 | R2.5 | 5.0 | 6 | 10 | 50 | 2 |
| EMT050600 | R3.0 | 6.0 | 6 | 12 | 50 | 2 |
| EMT050700 | R3.5 | 1.0 | 8 | 14 | 60 | 2 |
| EMT050800 | R4.0 | 8.0 | 8 | 16 | 60 | 2 |
| EMT051000 | R5.0 | 10.0 | 10 | 20 | 75 | 2 |
| EMT051200 | R6.0 | 12.0 | 12 | 24 | 75 | 2 |
| EMT051600 | R8.0 | 16.0 | 16 | 32 | 100 | 2 |
| EMT052000 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
