10L Oxygen Concentrator
Request a Quote

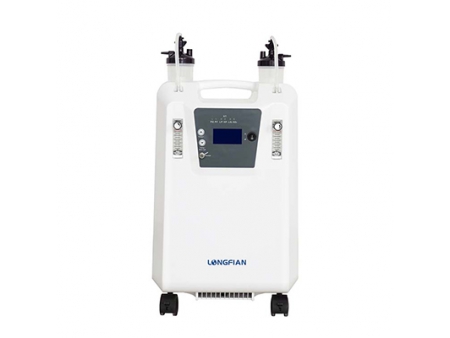

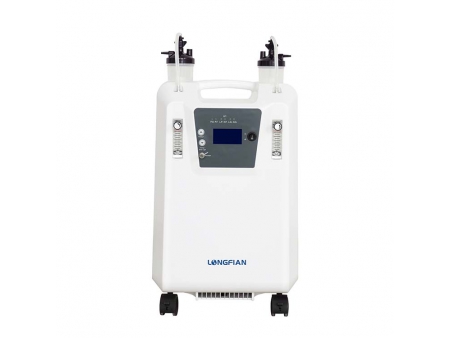

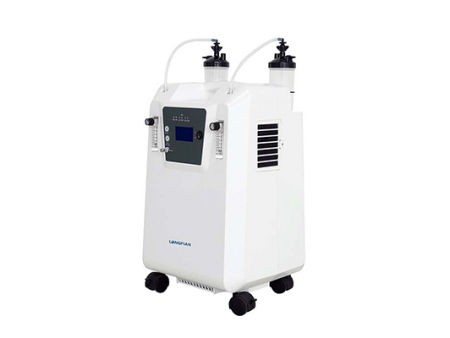

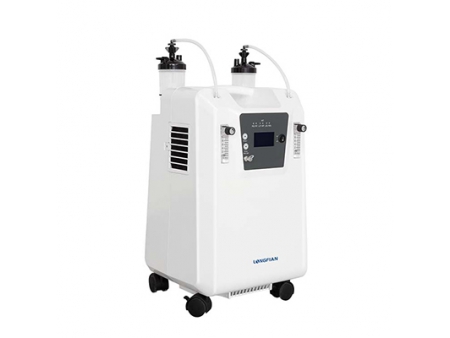

Longfian 10L oxygen concentrator model JAY-10 is the medical grade machine, the flow rate 10Lpm and the oxygen purity can be reached 93%±3%. The oxygen outlet pressure is 0.04-0.07Mpa.
JAY-10
Technical Parameters
| Model | ||
| Flow Rate | 0.5-10L/min | |
| Oxygen Purity | 93% (±3%) | |
| Outlet Pressure | 6-10PSI(0.04-0.07Mpa) /20PSI(0.14Mpa) | |
| Sound Level | ≤ 50dB | |
| Power Consumption | ≤ 880W | |
| Input Frequency | 50Hz ; 60 Hz | |
| Input Voltage | AC 230V ± 10%；AC 110V ±10% | |
| Optional | Dual flow | |
| Alarm | 1. Power failure alarm 2. High & low pressure alarm 3. Low oxygen concentration alarm | |
JAY-10FW
Technical Parameters
| Model | |
| Flow Rate | 0.5-10L |
| Outlet Pressure | 6-10PSI/20PSI |
| Oxygen Concentration | 93%(±3%) |
| Sound Level | ≤46dB |
| Power Consumption | ≤710W |
| Alarm | Power failure alarm, High/low pressure alarm, Low oxygen concentration alarm |
| Dimension | 385*350*600mm |
JAY-10-4.0
Technical Parameters
| Model | |
| Flow Rate | 1-10L/min |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 60PSI |
| Dimension | 590*460*1300mm |
| Net Weight | 90kg |
| Power Consumption | ≤ 1250W |
| Input Frequency | 50Hz; 60 Hz |
| Input Voltage | AC 230V±10%; AC 110V ±10% |
| Alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm |
- Features
- With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis.
- Innovative cooling technology ensures 24/7/365 operation.
- Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable.
- Features four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient.
- Simple operation functions and easy-to-read LCD display.
- Can be connected to HFNC, which provides oxygen with stable high concentration, more comfortable.
- It's connected with HBOC to rapidly and effectively increase the patients’ SPO2.
- Application
- Oxygen therapy according to doctor’s prescription, oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma.
- Medical 10L high purity medical oxygen concentrator is very useful for curing and recovery of COVID-19 patients.
- Connecting with HFNC provides oxygen with stable high concentration, more comfortable; Connecting with BIPAP makes it convenient for COPD patients to have oxygen therapy at home.
- Connecting with 5-way flow splitter supports 5 people to inhale oxygen at the same time.
- Connecting with oxygen chamber does treatment of cardiovascular and cerebrovascular diseases.
