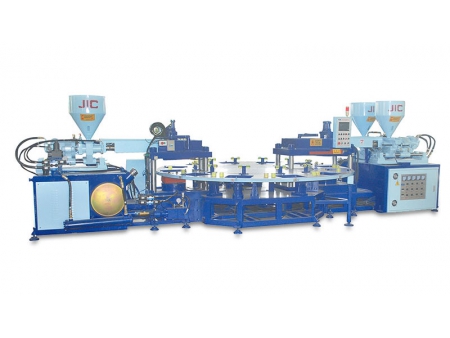

Three Color PVC Slipper Upper Injection Molding Machine
Request a Quote
Website: http://footwear-makingmachine.com/2-5-three-color-pvc-slipper-upper-injection-molding-machine.html

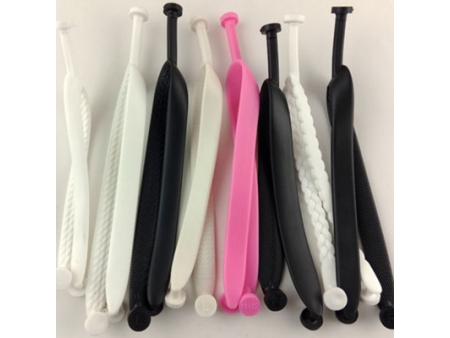

Rotary injection molding machine for producing plastic slipper uppers and flip flop straps
- The flexible use of the main machine and the auxiliary machine fits various scenarios;
- The injection molding machine can be applied to produce multi-color slipper uppers;
- It features high volume of output;
- It is equipped with a safety device that automatically cut off the electricity in an emergency;
Raw material: PVC
Applications:

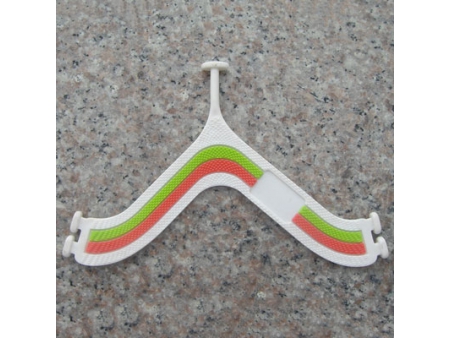

PVC- made slipper uppers in one, two and three colors
Technical Specifications
| Item | Unit | Specifications | ||
| Model | | | | |
| Raw material | PVC | PVC | PVC | |
| Max. number of stations | 6 | 8 | 10 | |
| Max. injection volume | cm³/cc | 300,250*2 | 300,250*2 | 300,250*2 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 | 0-120 |
| Power of electric heating | kW | 22 | 22 | 22 |
| Temperature setting | stage | 4 | 4 | 4 |
| Screw rotational speed | RPM | 0-190 | 0-190 | 0-190 |
| Screw diameter | mm | Φ50,Φ45*2 | Φ50,Φ45*2 | Φ50,Φ45*2 |
| Motor power | kW | 11*2 | 11*2 | 11*2 |
| Clamping force | T | 80 | 80 | 80 |
| Max. mold size | mm | 350*350*120 | 350*350*120 | 350*350*120 |
| Mold height | mm | 30-125 | 30-125 | 30-125 |
| Machine dimension | mm | 6600*2500*1800 | 6600*2500*1800 | 7000*3150*1800 |
| Machine weight | kg | 8100 | 8100 | 8400 |
If you have any specific requirements, please contact us for customization.
Features
- The injection molding machine is used to produce PVC uppers of sandals and slippers in up to three colors;
- The control system consists of an industrial interface, a PLC system and a touchscreen;
- The dual-ratio hydraulic valve precisely controls the injection pressure and rate of flow;
- The digital measurement system ensures high product quality;
- The touch panel is designed to be simple and easy to operate;
- The flexible use of the main machine and the auxiliary machine meets various production requirements;
- The slipper upper making machine features low energy consumption, less labor cost and high productivity.
