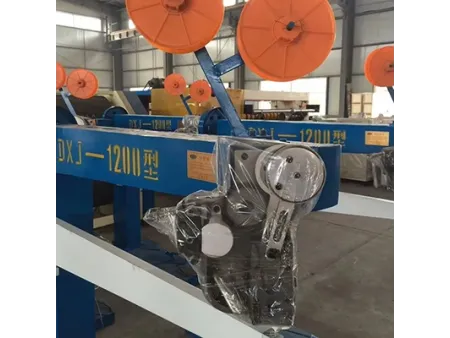

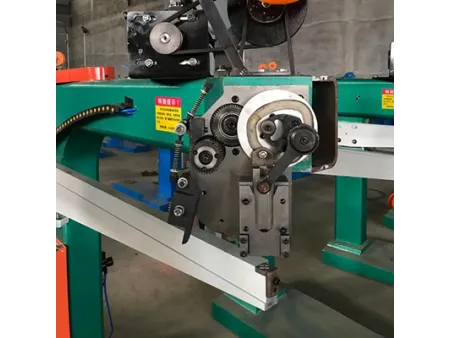

Arm Stitching Machine

Request a Quote

Website: http://cartonmachine-en.com/2-6-1-arm-box-stitching-machine.html

Arm stitcher for stapling cardboard sheets and corrugated boxes

Technical Specifications

Item	Model 1200	Model 1500	Model 1800	Model 2000
Speed, nails/min	0-600	0-600	0-600	0-600
Total power, kW	2.5	2.5	3	3
Push plate effective travel, mm	1000	1300	1500	1800
Machine length, mm	1500	1800	2100	2300
Machine width, mm	600	600	620	650
Operating height, mm	1080	1080	1080	1080
Machine weight, kg	400	500	550	600
Applicable wire size	17#	17#	17#	17#
Stitching method	Double nails	Double nails	Double nails	Double nails
