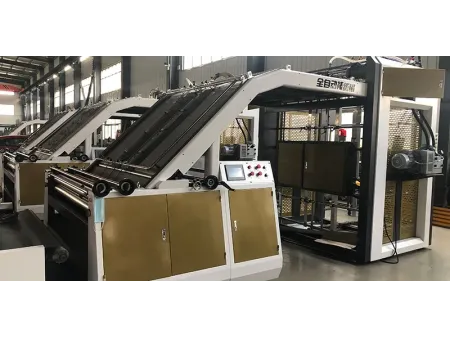

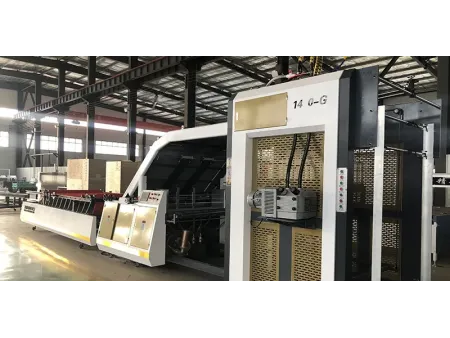

Automatic Flute Laminating Machine (6,000 sheets/hour)
Request a Quote
Features
- Supports lamination of 150-600 g/m² cardboard and corrugated board, meeting the requirements of mainstream packaging materials.
- Vacuum feeder ensures precise sheet feeding; the circulating pile-up stand allows continuous loading of the next batch of face sheets without stopping, improving uninterrupted production efficiency.
- Bottom sheets are fed via an automatic air-suction system that synchronizes with the manual feeding speed of the top sheets, reducing coordination errors.
- Newly designed elastic front lay positioning system offers high positioning accuracy, ensuring bottom sheets never advance prematurely and laminating alignment remains precise.
- Equipped with a touchscreen / PLC / servo-motor control system and dual-inverter control for stable electrical operation; supports automatic fault alarms for quick troubleshooting.
- Scientifically designed counter clearly records daily output for convenient tracking.
- Fully automatic gluing system automatically compensates for glue loss, combined with glue circulation and recovery to avoid waste; the metering roller’s line speed is carefully designed to ensure even glue application and prevent splashing during high-speed operation.
- The bottom glue roller is cleaned by squeezing it against a rubber roller, which removes residue efficiently, allowing foreign matter to settle directly into the water tank; a liner gear drive raises and lowers the tank for easy removal and cleaning, ensuring the underside of the bottom sheet remains clean.
- The pressing section features a suspended movable structure, 5 m in total length, equipped with 28 pressing rollers to ensure even pressure during flattening and to enhance lamination quality.
- Optional pressing beds are available: a 2.5 m small bed and a 5 m large bed to accommodate different production scenarios.
Technical Specifications
| Model | | | | |
| Max. laminating size, mm | 1300x1250 | 1400x1250 | 1500x1250 | 1600x1250 |
| Min. laminating size, mm | 400x400 | 400x400 | 400x400 | 400x400 |
| Economic speed, sheets/min | 0-100 | 0-100 | 0-100 | 0-100 |
| Laminating precision | ±1.5 | |||
| Power, kW | 10 | 12 | 12 | 12 |
| Machine dimensions (LxWxH), m | 13.5x2.0x2.4 | 13.5x2.05x2.4 | 13.5x2.15x2.4 | 13.5x2.25x2.4 |
| Machine weight, t | Approx. 4.8 | Approx. 5.0 | Approx. 5.2 | Approx. 5.4 |
| Bottom paper thickness | A/B/C/E/F flute, 2/3/4/5/7-layer, max. 12mm | |||
| Surface paper grammage, g/m² | 150-400 | |||
