Air-Cooled Silent Diesel Generators (2 Cylinder)
Request a Quote
10kW-20kW Diesel Genset
10kW-20kW Diesel Genset
Automatic Transfer Switch (ATS)
The generator is compatible with a fully automatic ATS control panel, which features status indicators for utility power, generator operation, automatic mode, and fault alarms.
When the ATS detects a utility power outage, the generator will start automatically, and the ATS will transition the power supply to the generator. Once utility power is restored, the system will implement a delay shutdown period of 30 to 60 minutes, after which the ATS will automatically switch back to grid power.
The ATS configuration guarantees an uninterrupted power supply with seamless transitions during outages.
Product Details

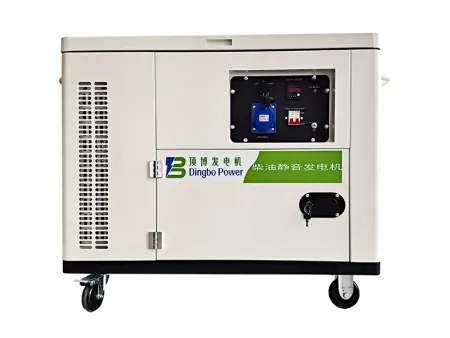

12kW/15kW Air-Cooled Silent Diesel Generators
Features
- Equipped with a reliable twin-cylinder, 4-stroke, air-cooled diesel engine for low emissions and stable performance—suitable for demanding power needs.
- The silent diesel generator provides reliable output, featuring a full-copper alternator with an automatic voltage regulator (AVR) system that ensures strong excitation and minimal voltage fluctuations.
- The generator’s rugged structure is built with a reinforced frame and has built-in caster wheels for easy transport across job sites, making it suitable for outdoor locations.
- The silent genset offers built-in overload safety protection and low oil level shutdown to protect the unit and extend its lifespan.
- The air-cooled silent genset comes standard with a specially engineered noise-reducing muffler system that effectively suppresses noise, making it suitable for residential or noise-sensitive environments.
Specifications
| Genset Model | | | |
| Alternator | Excitation Mode | Brushed, self-excitation, AVR (automatic voltage regulation) | |
| Prime Power (kW) | 12 | 15 | |
| Standby Power (kW) | 13 | 16 | |
| Rated Voltage (V) | 220/380 | 220/380 | |
| Frequency (Hz) | 50 | 50 | |
| Phase | Single phase Three phase | ||
| Power Factor (COSφ) | 1/0.8 | 1/0.8 | |
| Insulation Class | F | F | |
| Engine | Engine Model | KD292 | 2V95 |
| Bore Size×Stroke (mm) | 92×75 | 95×75 | |
| Displacement (cc) | 997 | 1247 | |
| Engine Type | 2 cylinder, air-cooled, direct injection | ||
| Fuel Type | Diesel | ||
| Oil Capacity (L) | 2.5 | 3.2 | |
| Starting System | Electric Start | ||
| Genset | Fuel Tank (L) | 30 | 30 |
| Noise Level (dBA/7m) | 78 | 78 | |
| Dimension (mm) | 1255×755×865 | 1255×755×982 | |
| Weight (kg) | 300 | 340 | |
15kW/20kW Air-Cooled Silent Diesel Generators
Features

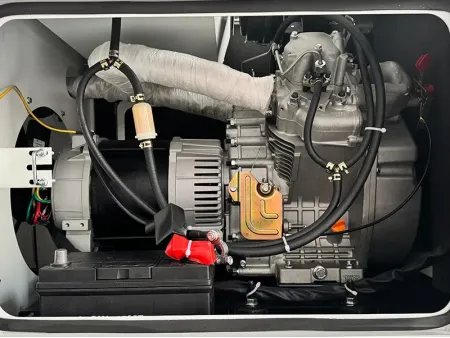

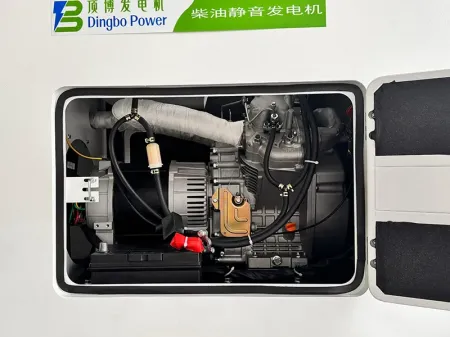

- Utilizing a powerful V-type twin-cylinder, 4-stroke, air-cooled engine configuration for enhanced stability and efficiency, combined with a large copper alternator, this silent diesel generator ensures the delivery of high output under continuous load.
- Features a premium acoustic housing with imported sound-absorbing insulation, with the operational noise kept at or below 78 dB, ensuring ultra-silent enclosure design.
- This air-cooled diesel generator utilizes a maintenance-free battery and user-friendly panel, with a long-life battery life and a rugged power connection panel with anti-drop sockets and terminals for secure wiring.
- Outfitted with a large-capacity fuel tank and comprehensive protection system, the genset supports an extended runtime of continuous 8-hour operation at a rated load with stable performance.
Specifications
| Genset Model | | | |
| Alternator | Excitation Mode | Brushed, self-excitation, AVR (automatic voltage regulation) | |
| Prime Power (kW) | 18 | 15 | |
| Standby Power (kW) | 20 | 16 | |
| Rated Voltage (V) | 220/380 | 220/380 | |
| Frequency (Hz) | 50 | 50 | |
| Phase | Single phase Three phase | ||
| Power Factor (COSφ) | 1/0.8 | 1/0.8 | |
| Insulation Class | F | F | |
| Engine | Engine Model | 2V98 | 2V95 |
| Bore Size×Stroke (mm) | 98×88 | 95×75 | |
| Displacement (cc) | 1326 | 1247 | |
| Engine Type | 2 cylinder, air-cooled, direct injection | ||
| Fuel Type | Diesel | ||
| Oil Capacity (L) | 3.2 | 3.2 | |
| Starting System | Electric Start | ||
| Genset | Fuel Tank (L) | 30 | 30 |
| Noise Level (dBA/7m) | 78 | 78 | |
| Dimension (mm) | 1300×800×1000 | 1255×755×982 | |
| Weight (kg) | 350 | 340 | |
