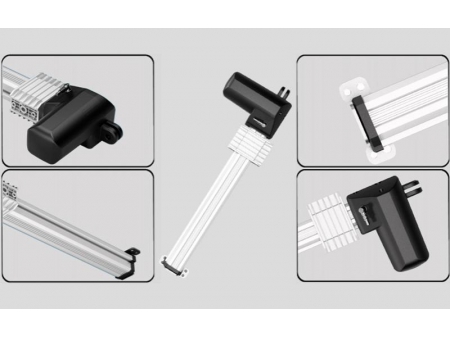

The U5C model linear slide actuator is an updated version of the , and is specially designed for use in electric sofas, massage chairs, electric beds and other smart furniture. The only difference between the U5C model linear slide actuator and the is that the gear box is equipped with plug of female 5 pins for manual controllers. The circuit board is installed in the gear box, which allows the linear controller to be easy to install and control.
Appearance and sizeCurve graph ① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)
Code of Parameters| code | Rated laod（N） | Rated current（A） | Rated speed（mm/s） | ||
| Push | Pull | No-load(32VDC) | Full-load(24VDC) | ||
| Standard motor (2600RPM) | |||||
| A | 6000 | 3000 | 5 | 5.4 | 2.9 |
| B | 5000 | 3000 | 5 | 7.1 | 3.9 |
| C | 3000 | 3000 | 4.5 | 11 | 6.2 |
| D | 2500 | 2500 | 4 | 15.8 | 7.8 |
| E | 2000 | 2000 | 5 | 22.5 | 13 |
| F | 1200 | 1200 | 4 | 33 | 19 |
| G | 700 | 700 | 4.5 | 44.5 | 23.6 |
| High Speed Motor(3400RPM) | |||||
| H | 6000 | 3000 | 5 | 6.7 | 3.9 |
| I | 5000 | 3000 | 5 | 7.6 | 4.6 |
| J | 3000 | 3000 | 4.8 | 10.1 | 8.2 |
| K | 2500 | 2500 | 4.5 | 15.1 | 11 |
| L | 2000 | 2000 | 4.5 | 20.2 | 16 |
| M | 1200 | 1200 | 5 | 27.1 | 23 |
| N | 700 | 700 | 4.5 | 39.5 | 30 |
Comment: when the voltage changes from 24V to 12V, the current will be doubled.
Customization parameter1=12V
2=24V(standard)1=straight
2=coiled
1=NO
2=L type dead plate
C=customization1=Plastic clevis, slot 6.2mm, hole Φ10.2mm
C=customization
1=Tined leads
2= 01 Pin
3=Din 4 pin, 90°
4=Din 5 pin, 90°
5=Din 6 pin, 90°
C=customization1=Switches in both end off to stop
2=Switches in both end off to output signal
3=Switches in both end off to stop and a third one off to output signal
4=Switches in both end and a third one off to output signal
C=customization
1=no
2=single Hall sensor
3=Dual Hall sensor
4=reed sensor1=no
3=torsional spring of 4.5 coil
2=torsional spring of 3 coil
4=motor brake
1=0.5m
2=1m
3=1m
4=2m
5=3m
C=customization
