Automatic Tube Filling and Sealing Machine
Request a Quote
Pharmaceutical Machinery
OintmentNF-60Z

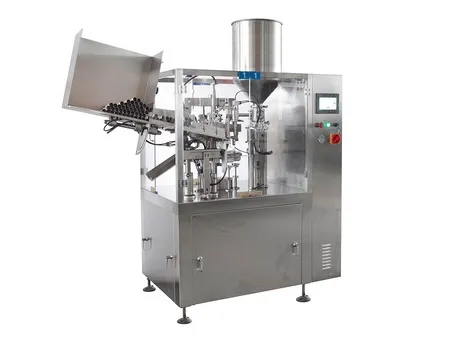

Tube filler & sealer for automated filling and closing of aluminum squeeze tubes
- 30 to 50 Tubes Per Minute
- 5 to 250 ml Filling Range
The automatic aluminum tube filling and sealing machine is designed for manufacturing processes in cosmetics and ointment products. This ointment filling machine automates tube feeding, orientation, heating, sealing, and pre-treatment, utilizing a mechanical piston filling system with advanced electrical and control systems. It is ideal for industries such as pharmaceuticals, food, and personal care products.
Applications
Filling various personal care products and shoe care products
Key features
- Built-in counting function tracks production and provides alerts when the set quantity is reached.
- Includes emergency stop, door protection, low air pressure, and overload alarm functions to ensure safe operation.

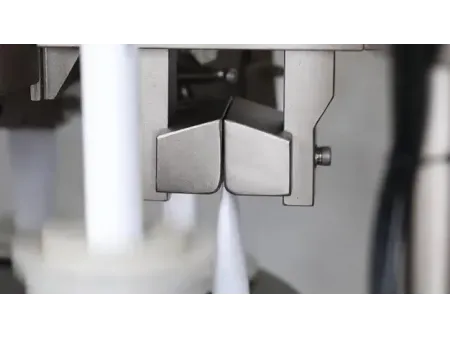

- Features a no tube, no filling system and an automatic filling mechanism that prevents wastage by ensuring clean and precise cut-off of viscous materials.
- Drive components are located beneath the platform for safety and to prevent contamination.

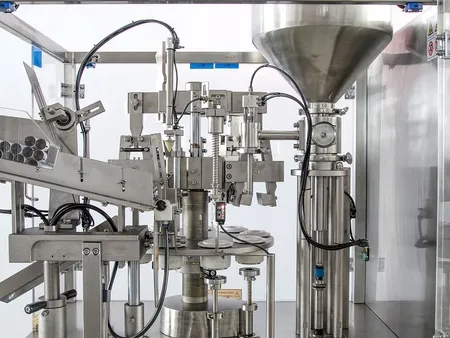

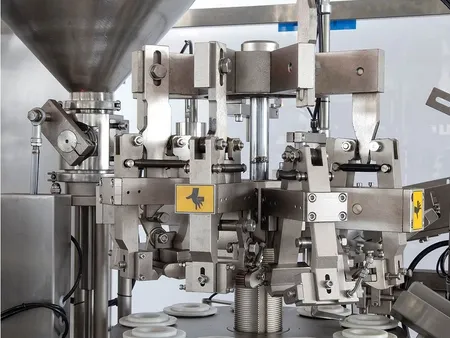

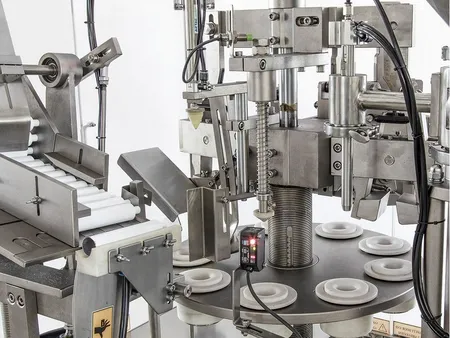

- Filling and sealing components are installed in a semi-enclosed, static-free, transparent housing above the platform for easy observation and operation.
Specifications
| Model | NF-60Z |
| Production Capacity | 30-50 tubes/min |
| Filling Range | 5-250 ml/tube |
| Filling Accuracy | ≤±1% |
| Room Temperature | 18-26℃ |
| Motor Power | 1.1kW |
| Machine Dimensions (L×W×H) | 1950×1000×1800mm |
| Machine Weight | 850kg |
| Working Pressure | 0.5-0.7MPa |
| Power Supply | 3 phase, 4 wire AC |
| Voltage | 380V |
| Frequency | 50Hz |
| Current | 25-30Hz |
| Diameter of Aluminum Tube | 13-35mm |
| Max. Length of Aluminum Tube | 180mm (including cap) |
| Air Consumption | 1.1m³/min |
| Noise Level | ＜75dB |
| Voltage Variation | ±10% |
| Heat Insulation Barrel | 2kW (optional) |
| Mixing Power | 0.18kW (optional) |
