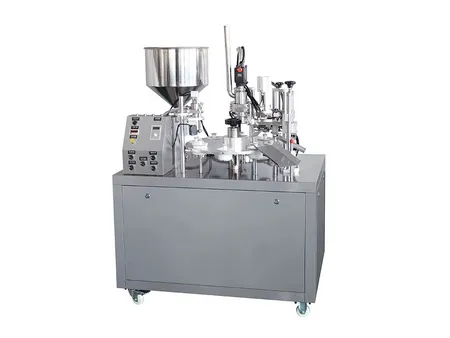

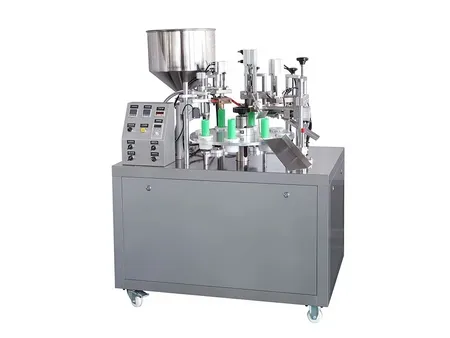

Semi-Automatic Tube Filling and Sealing Machine
Request a Quote
Pharmaceutical Machinery
OintmentNF-30
Tube filler & sealer for automated filling and closing of plastic and aluminum tubes
- 10 to 30 Tubes Per Minute
- 5 to 250ml Filling Range

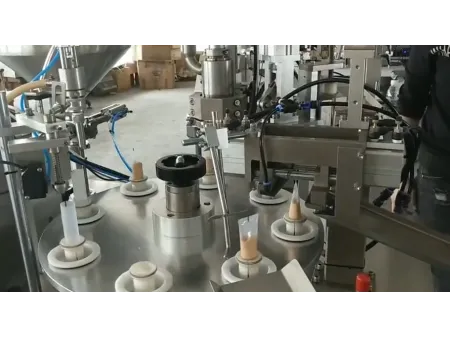

The semi-automatic tube filling and sealing machine ensures precise filling and stable sealing. Designed with 8 working stations, the tube filler automates all processes except manual tube feeding. The shape and size of the seals can be easily adjusted to meet user-specific requirements, making it a versatile choice for various industries.
Applications
This semi-automatic tube filling equipment is ideal for use in the cosmetics, pharmaceutical, adhesive, and shoe polish industries, as well as other related sectors.
Key features
- All components feature quick-release connections, enabling easy disassembly and cleaning.

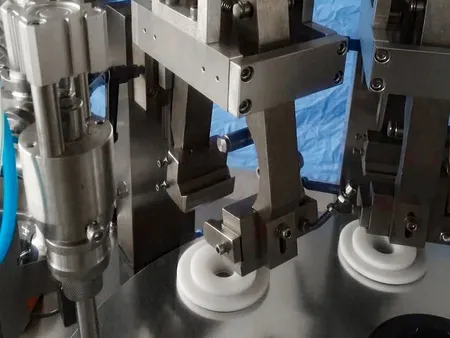

- Equipped with a hot air sealer for cutting off the end of the tube to prevent the accumulation of cut-off material from the tube ending on the worktable (specific to plastic tubes).
- Includes a no-tube-no-filling function to prevent material wastage and pneumatic components that stop operation when necessary.
- All parts in contact with product are made of high-quality stainless steel, with easy-to-clean quick-change components for convenience.
- For materials requiring temperature control, the tube filling machine can be equipped with a heated and temperature-controlled barrel.
Specifications
| Model | NF-30 |
| Production Capacity | 10-30 tubes/min |
| Filling Range | 5-250ml (aluminum tube) Additional charge will be made for 200-250ml tube |
| Filling Accuracy | ±1% |
| Working Pressure | ＞0.4MPa |
| Power Supply | 220V±10% |
| Power | 750W |
| Machine Dimensions (L×W×H) | 1200×820×1650mm |
| Machine Weight | 350kg |
