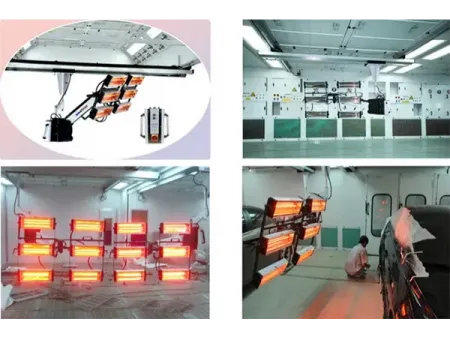

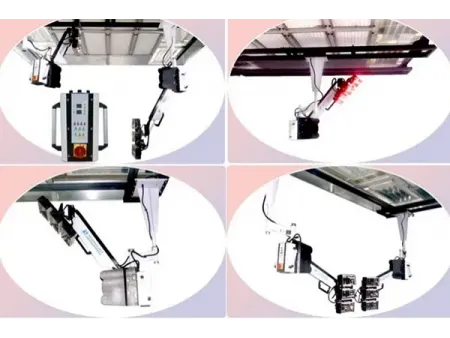

Infrared Paint Curing Lamp
IR curing lights for even heat transfer and rapid drying of putty and paint surface
Infrared curing lamps are built for mobility, and the smooth-rolling casters make it easy to move them between the workshop floor, the spray booth or any prep area where quick drying is needed.
The heating effect comes from 304 stainless-steel reflectors, which deliver strong thermal efficiency and bounce more than 80% of the heat back toward the surface. This keeps the drying process steady and allows the heat to settle evenly across the surface being treated.
Each unit includes a digital timer for simple, reliable control. For jobs that need a bit more precision, optional distance and temperature sensors can be added. These additions give operators a safer working setup and help the drying process run more smoothly with consistency.
- 3 × 1 kW
- Drying area: 0.8 × 0.6 m²
- Drying distance: 0.5–0.8 m
- Temperature rise time: 5–15 min (20℃ to 80℃)
- Lamp length: 480 mm
- Maximum curing time: 99 min
- Four preset programs for putty, clear coat, base coat and water-based paint
- Flash-off function
- Optional temperature controller
- Four ceiling rails: 6.8 m (vertical) and 3.7 m (horizontal), adjustable according to the working area size
- 6 × 1 kW
- Curing area: 2 × 0.6 m² per cassette
- Drying distance: 0.5–0.8 m
- Temperature rise time: 5–15 min (20℃ to 80℃)
- Lamp length: 480 mm
- Maximum curing time: 99 min
- Four preset programs for putty, clear coat, base coat and water-based paint
- Flash-off function
- Optional temperature controller
- Four ceiling rails: 6.8 m (vertical) and 3.7 m (horizontal), adjustable according to the working area size
| Model No. | ||||||
| Type | Two-Cassette | Three-Cassette | Six-Cassette | |||
| Voltage | 220 – 240 V, 50/60 Hz | 220 – 240 V, 50/60 Hz | 220-240 V, 50/60 Hz | |||
| Power | 2 kW | 3 kW | 6 kW | |||
| Bake Temperature | 40℃ - 100℃ | |||||
| Bake Area | 800 x 800 mm | 1200 x 1000 mm | 2000 x 1000 mm | |||
| Bake Time | 0 – 60 min | 0 – 99 min | 0 – 99 min | |||
| Bake Power | - | 30% - 100% | 35% - 99% | 35% - 99% | 10% - 99% | 35% - 99% |
| Tube Length | 500 mm | 500 mm | 500 mm | 500 mm | ||
| Gross Weight | 19.3 kg | 3.8 kg | 53 kg | 53 kg | 54 kg | 73 kg |
PL-2B&2E
PL-3E
PL-3ES
PL-3TD
PL-6ES
PL-6TD (688USD)
