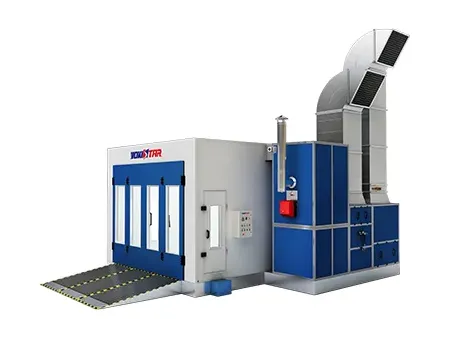

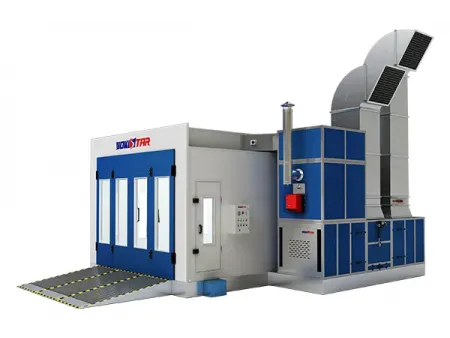

Automotive Paint Booth (High-Class Paint Booth)
Kalux Series
Industrial spray booths for car refinishing
The Kalux series is the high-class option in this line of automotive paint booths. It has stronger airflow, a cleaner interior layout and better lighting, which makes the workspace more comfortable for technicians handling detailed refinishing work.
Downdraft automotive paint booths are useful for car refinishing because the air flows cleanly and directly from the ceiling to the floor. The air flows in one direction from the ceiling to the floor, which keeps the temperature more stable and makes it easier to paint and cure. Thanks to the airflow moving downward, overspray and solvent vapors leave the paint booth faster, which keeps the painted surface clean and makes the area safer for the operators. Side-draft booths usually need more energy to reach the same result. A downdraft booth can use about 20–30% less because the heat stays in the area where the work is done instead of spreading around. The initial investment is higher, but the paint finish on the vehicle is more uniform, rework is reduced, and the technicians can move through the process with more ease.
Motor and Fan (Makeup Air Units)
- Motor type: motor mounted inside the fan housing
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: double-intake centrifugal fan (YDW-5.6M)
- Total air capacity: 20,000 m³/h
Motor and Fan (Exhaust Air Units)
- Motor type: motor mounted inside the fan housing
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: double-intake centrifugal fan (YDW-5.6M)
- Total air capacity: 20,000 m³/h
Exhaust Air Filtration
- Fiberglass filter: G3 grade (EN779), type PA-50
- Granular active carbon (KC-8.0) in “M-shape” filter frame
Motor and Fan (Makeup Air Units)
- Motor type: belt drive
- Qty: 2 pcs
- Single motor power: 4 kW
- Total power: 8 kW
- Fan type: double-intake centrifugal fan (TAE-400-H)
- Total air capacity: 25,000 m³/h
Motor and Fan (Exhaust Air Units)
- Motor type: belt drive
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: double-intake centrifugal fan (TAE-560-H)
- Total air capacity: 25,000 m³/h
Exhaust Air Filtration
- Fiberglass filter: G3 grade (EN779), type PA-50
- Granular active carbon in “column-shape” filter frame
Motor and Fan (Makeup Air Units)
- Motor type: direct drive
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: single-intake turbo fan
- Total air capacity: 25,000 m³/h
Motor and Fan (Exhaust Air Units)
- Motor type: direct drive
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: single-intake turbo fan
- Total air capacity: 25,000 m³/h’
Exhaust Air Filtration
- Active carbon filter in “pocket-shape”, F5 grade (EN779), type C16-200
| Base Structure | |
| Floor Arrangement |
|
| Cover Plate | Bent galvanized-steel cover plate, 300 mm high |
| Supporting Frame | Galvanized square-tube steel frame, 40 × 80 mm (W × L) |
| Floor Filter | Fiberglass filter installed on filter frame, G3 grade (EN779), filtering area 26.91 m² |
| Booth Body | |
| Entrance Door | 4-leaf door, size 3,200 × 2,600 mm (W × H), bent-steel structure without exposed edge, tempered-glass windows, color-steel frame |
| Personnel Door | 1 pc, size 700 × 2,000 mm (W × H), tempered-glass window, square color-steel frame |
| Wall Panel | 50 mm thick, 1,000 mm wide, EPS insulation, covered with 0.426 mm color-steel sheet. Tongue-and-groove interlock panel, both sides color-steel |
| Roof Panel | Made of 0.6 mm bent galvanized-steel plate |
| Ceiling Light | 10 fixtures on left and right upper position. PHILIPS LED 22 W per fixture. Total 40 tubes |
| Side Light | 10 fixtures on left and right wall panel. PHILIPS LED 22 W per fixture. Total 40 tubes |
| Plenum | 450 mm high, made of bent galvanized-steel panels, powder-coated |
| Ceiling Filter | Aluminum profile support net with F5 ceiling filter (EN779), type SP-600G |
| Makeup Air Units | |
| Cabinet Frame | 1.5 mm bent galvanized steel, aluminum-alloy three-way connector |
| Makeup Air Control | Belimo NMU230 10N actuator or manual damper (depending on model) for fresh-air control |
| Pneumatic Actuator | Controls air-valve opening/closing during spraying or baking |
| Heating System |
|
| Makeup Air Filter | Pre-filter, G3 grade (EN779) |
| Exhaust Air Units | |
| Cabinet Frame | 1.5 mm bent galvanized steel, aluminum-alloy three-way connector |
| Exhaust Air Control | Belimo NMU230 10N actuator for air-valve opening/closing. Equipped with 4 m straight duct, 1 pc 90° elbow duct, and 1 pc 30° elbow duct |
| Control System | Includes: pressure gauge, temperature controller, baking timer, hour counter, spray switch, heat-spray switch, bake switch, left light switch, right light switch, start switch, power switch, emergency stop |
