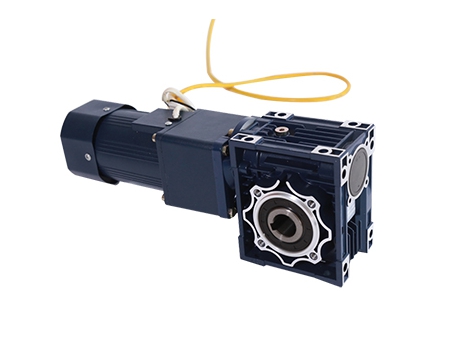

400W Bevel Gear Speed Reducer

400W Bevel Gear Speed Reducer
Request a Quote
View All: http://customreducer.com/3-10-400w-bevel-gearbox-speed-reducer.html
Specifications
Model Power(W) Voltage(V) Frequency(Hz) Current(A) Starting torque(mN.m) Rated torque Mn.m(Mn.m) Rated speed(r/min) Rated time(min) Capacitor(μF/VAC)
Motor with round shaft Motor with gear shaft
Induction motor 7IK400A-A 7IK400GN-A 400 1PH110 (single phase) 50 6.0 2.4 2.7 1300 Continuous 60/250
60 5.7 2.1 2.3 1500
7IK400A-C 7IK400GN-C 400 1PH220 (single phase) 50 3.0 2.4 2.7 1300 Continuous 16/450
60 2.7 2.1 2.3 1500
7IK400A-S 7IK400GN-S 400 3PH220 (three phase) 50 3.0 7.2 2.7 1300 Continuous
60 2.7 6.3 2.3 1500
7IK400A-U 7IK400GN-U 400 3PH380 (three phase) 50 1.5 7.2 2.7 1300 Continuous
60 1.2 6.3 2.3 1500
Brake motor 7IK400A-AM 7IK400GN-AM 400 1PH110 (single phase) 50 6.0 2.4 2.7 1300 30 60/250
60 5.7 2.1 2.3 1500
7IK400A-CM 7IK400GN-CM 400 1PH220 (single phase) 50 3.0 2.4 2.7 1300 30 18/450
60 2.7 2.1 2.3 1500
7IK400A-SM 7IK400GN-SM 400 3PH220 (three phase) 50 3.0 7.2 2.7 1300 30
60 2.7 6.3 2.3 1500
7IK400A-UM 7IK400GN-UM 400 3PH380 (three phase) 50 1.5 7.2 2.7 1300 30
60 1.2 6.3 2.3 1500
Model Power(W) Voltage(V) Frequency(Hz) Starting torque(mN.m) Speed control range r/min Rated torque Mn.m(Mn.m) Rated time
min		 Capacitor
μF/VAC
Motor with round shaft Motor with gear shaft 1250r/min 90r/min
Adjustable speed motor 7IK400RA-A 7IK400RGN-A 400 1PH110 (single phase) 50 2.05 90-1400 2.68 0.58 Continuous 48/250
60 1.86 90-1600 2.68 0.58
7IK400RA-C 7IK400RGN-C 400 1PH220 (single phase) 50 2.05 90-1400 2.68 0.58 Continuous 12/450
60 1.86 90-1600 2.68 0.58
