Solid Tire Vulcanizing Machine Manufacturer

Solid Tire Vulcanizing Machine

Request a Quote

Website: http://rubber-process.com/3-13-solid-tire-vulcanizing-machine.html

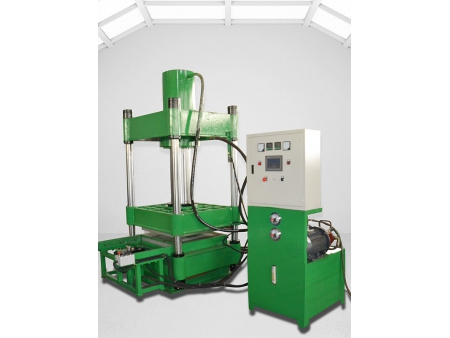

This solid tire vulcanizing machine is mainly used for manufacturing solid tires for trolleys and special vehicles. This rubber tire vulcanizing machine is featured by automatic mold clamping, automatic gas discharging, automatic pressure compensation, vulcanization timer, automatic constant temperature, timer alarm and automatic mold opening.

Specifications

XLB-D 800×800×1/2.00MN

Nominal clamping force: 2.00MN
Heating plate size: 800×800× thickness 56mm
Spacing: 850×850mm
No. of heating plate: 2 pieces
Working layer: 1 layer
Working pressure: 31.25kg/cm²
No. of main cylinder: 1 set
Push-pull mode: automatic hydraulic push-pull
Max. system pressure: 20Mpa
Control: PLC automatic control

XLB-D1200X1200X4/8.00MN

Nominal clamping force: 8.00MN
Frame number: 2 pieces
Heating plate size: 1200×1200×76mm
No. of heating plate: 5 pieces
Working layer: 4 layers
Max. working temperature of heating plate: 200℃
No. of main cylinder: 1 set
Heating mode: electrical heating
Mold ejection: hydraulic ejection (auxiliary lifting device)
Machine dimensions: 2070×2800×6200mm

Features

Automation 4.0 Design
Our tire vulcanizing machine includes advanced automation features that make processes smoother, such as fast lifting, slow mold closing, automatic air release, pressure adjustment, and temperature control. It also allows for automatic mold opening and tire ejection, simplifying the operation and boosting efficiency
High Efficiency
The multi-layer design allows vulcanization at low temperatures and high pressure at the same time, helping to increase productivity through centralized control
Reliable and Durable
Designed for continuous 24-hour operation, this vulcanizing press ensures efficient performance even in high-demand production environments

What is the best way to decide which model of solid tire vulcanizing press suits my needs?

The most simple approach is to provide us with the specifications or size of the tires you’re planning to produce. With that information, we’ll help you select a solid tire vulcanizing machine that aligns with your product dimensions and daily output goals.

How automated is this type of vulcanizing press?

Our solid tire vulcanizing presses are designed to handle heavy workloads with minimal manual intervention. Most tire vulcanizing presses are built with three working layers, and larger vulcanizing units can be quite massive, making manual handling impractical. For this reason, our solid tire vulcanizing presses are designed to carry out automatic processes. Each stage is managed in a single programmed sequence, from pressure adjustment and temperature control to vulcanization, mold opening, and moving the mold in and out, ensuring smooth, reliable operation with minimal manual intervention. If you want to further improve productivity, we can equip the vulcanizing press with additional features such as robotic systems that automatically load raw tire blanks and unload finished tires.
