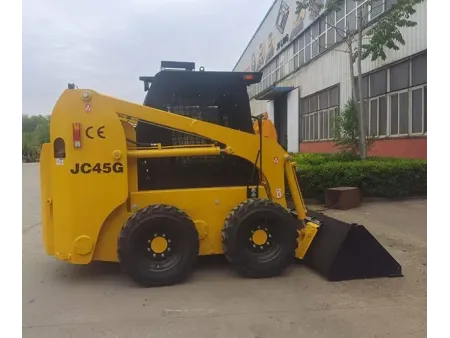

JC45 Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-2-8-skid-steer-loader.html

High working efficiency: With a rated load of 700 kg, bucket capacity of 0.4 m³, and a maximum breakout force of ≥18.4 kN, the JC45 is ideal for material stacking, truck loading, and high-intensity handling operations.
Optimized loading height: The bucket hinge pin height reaches 3080 mm with a maximum dumping height of 2380 mm, making it suitable for loading medium- and heavy-duty trucks.
Quick attachment coupling system: Standard quick coupler allows compatibility with multiple tools such as hydraulic breakers, sweepers, grapples, and snow plows, supporting diverse worksite requirements.

Specifications

Engine

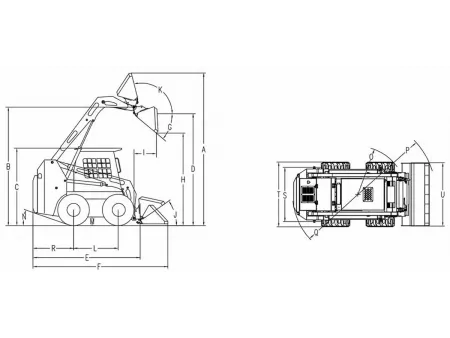

Dimensions

A	Overall operating height	3980mm
B	Height to bucket hinge pin	3080mm
C	Height to top of cab	2140mm
D	Height to bottom of level bucket	2913mm
E	Overall length without bucket	2640mm
F	Overall length with bucket	3420mm
G	Dumping angle at maximum height	40°
H	Dumping height	2380mm
I	Dumping reach	700mm
J	Rollback of bucket on ground	30°
K	Rollback of bucket at full height	104°
L	Wheelbase	1075mm
M	Ground clearance	185mm
N	Angle of departure	20°
O	Front turning radius without bucket	1300mm
P	Front tuning radius	2290mm
Q	Rear tuning radius	1440mm
R	Rear axle to bumper	1080mm
S	Track width	1450mm
T	Width	1720mm
U	Bucket width	1740mm
