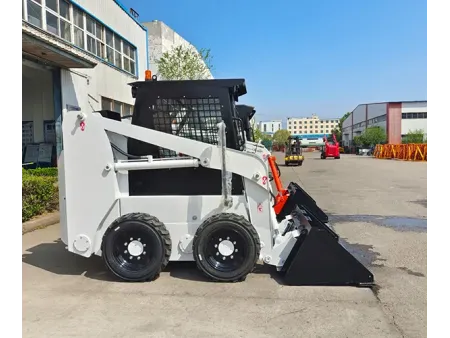

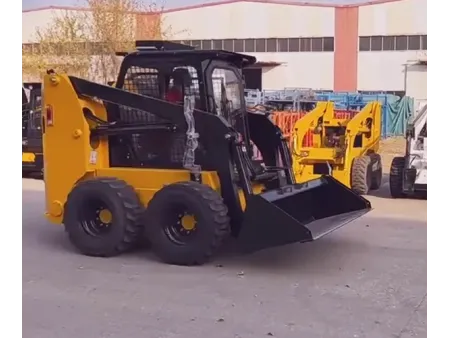

JC35 Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-2-7-skid-steer-loader.html

Efficient power system: Equipped with a Xinchai C490BPG engine delivering 36.7 kW at 2650 rpm with a 2.27 L displacement, ensuring stable power output and low fuel consumption.
Compact design with excellent maneuverability: Overall width of only 1400 mm and a minimum turning radius of 1310 mm (without bucket) allow smooth operation and easy access in confined areas.
Stable structure for rough terrain: With a wheelbase of 897 mm, ground clearance of 140 mm, and an approach angle of 20°, it maintains steady performance across uneven ground.
Quick attachment coupling system: Standard quick coupler supports a wide range of tools including hydraulic breakers, sweepers, grapples, and snow plows, offering adaptability for various job requirements.

Specifications

Engine

Dimensions

A	Overall operating height	3300mm
B	Height to bucket hinge pin	2425mm
C	Height to top of cab	2000mm
D	Height to bottom of level bucket	2260mm
E	Overall length without bucket	2300mm
F	Overall length with bucket	2950mm
G	Dumping angle at maximum height	40°
H	Dumping height	2000mm
I	Dumping reach	690mm
J	Rollback of bucket on ground	30°
K	Rollback of bucket at full height	104°
L	Wheelbase	897mm
M	Ground clearance	140mm
N	Angle of departure	20°
O	Front turning radius without bucket	1310mm
P	Front turning radius	1881mm
Q	Rear turning radius	1296mm
R	Rear axle to bumper	964mm
S	Track width	1080mm
T	Width	1400mm
U	Bucket width	1422mm
