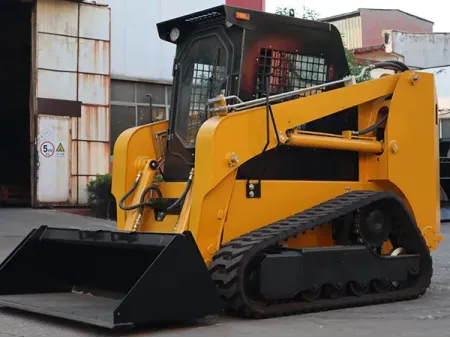

TS65 Skid Steer Loader
Request a Quote
Compact track loader with rated operating capacity of 1000kg for road repair and construction tasks
- Operating weight
4200kg - Rated load
1000kg - Bucket capacity
0.5m³ - Max. speed
12/18km/h
- Rubber track system: Provides low ground pressure and strong traction, allowing excellent stability and maneuverability on soft or uneven surfaces
- Dual-speed travel mode: Switchable 12/18 km/h speeds balance precise control for detailed work and faster travel for material transfer
- Optimized working geometry: With a bucket hinge pin height of 2900 mm and a dumping height of 2230 mm, it is ideal for loading medium to large trucks and hoppers efficiently
Specifications
| Model | TS65 |
| Operating weight | 4200kg |
| Rated load | 1000kg |
| Bucket capacity | 0.5m³ |
| Max. speed | 12/18km/h |
| Max. traction | ≥28.20kN |
| Max. breakout | ≥20kN |
| Lifting time of boom | 7s |
Engine
| Manufacturer | Xinchai |
| Model | C498BPG |
| Rated power | 55kW/2500rpm |
| Engine displacement | 3.17L |
| Emission standard | China II |
Dimensions
| Overall operating height | 3871mm |
| Height to bucket hinge pin | 2900mm |
| Height to top of cab | 2150mm |
| Height to bottom of level bucket | 2730mm |
| Overall length without bucket | 2750mm |
| Overall length with bucket | 3500mm |
| Dumping angle at maximum height | 40° |
| Dumping height | 2230mm |
| Dumping reach | 715mm |
| Rollback of bucket on ground | 30° |
| Rollback of bucket at full height | 104° |
| Wheelbase | 1500mm |
| Ground clearance | 200mm |
| Angle of departure | 20° |
| Front turning radius without bucket | 1298mm |
| Front turning radius | 2010mm |
| Rear turning radius | 1714mm |
| Rear axle to bumper | 890mm |
| Track width | 1462mm |
| Width | 1782mm |
| Bucket width | 1830mm |
