Double Lane Tray Former, ZX-1600

Double Lane Tray Former, ZX-1600
Double Lane Tray Former, ZX-1600
Double Lane Tray Former, ZX-1600
Double Lane Tray Former, ZX-1600
Double Lane Tray Former, ZX-1600
Request a Quote

Double lane tray former is designed with compression module to directly erect cardboard food boxes and trays which are suitable for both liquid and solid foods, it significantly increases efficiency compared to conventional box folding gluing machine which requires two steps to conduct.


This tray forming machine is CE compliant, and features stable transmission, high production efficiency, small footprint. Through rapid changeover, various types of cardboard takeaway containers, french fry boxes, hamburger boxes, hot dog trays and other similar cardboard packaging products can be efficiently produced by one machine.

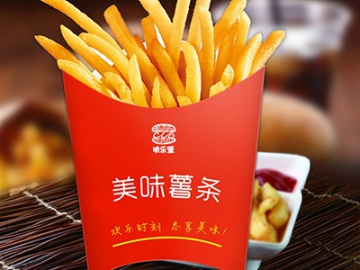

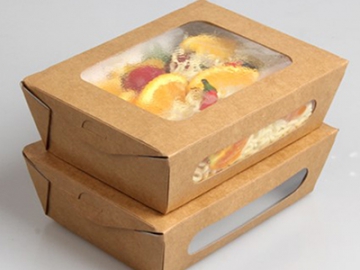

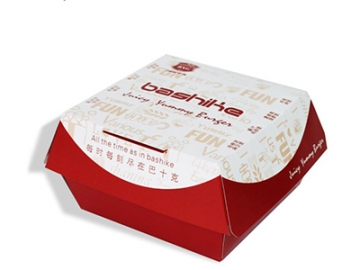

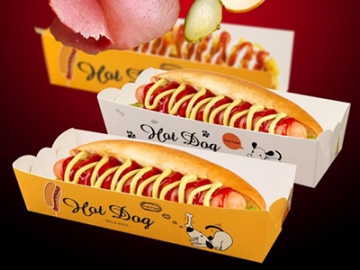

Examples of Cardboard Food Containers
Technical Specifications
Model ZX-1600
Machine speed 100-320pcs/min
Material 200-620gsm Cardboard thickness:1.6mm
Container size Length L100-450mm
Degree:5°-45°
Width B100-600mm
Height H 15-200mm
Power 6kW
Air supply requirements 0.5Mpa, 0.4m³/min
Power supply 380V 50Hz
Machine dimensions 3600×1850×1700mm
Machine weight 2800kg
Features
  • Servo controlled forming module provides higher precision in comparison with mechanical cam control;
  • Fully servo system is adopted to replace cam system;
  • Easy changeover can be performed in shorter time, enabling various types of products to be formed in an efficient manner;
  • The machine is completely controlled by PLC system, able to build complex cardboard boxes and trays;
  • Automatic collecting, storing and counting;
  • User-friendly control panel, safe and easy to operate;
  • Operating parameters are storable by PLC, greatly saving time;
