Portable Pulse Fiber Laser Cleaning Machine
- Laser Power: ≤300W
- Net weight: 40Kgs
- Cleaning head weight: 0.78Kgs
- Scan width: 175x175mm
- Ultra-light handheld design: Weighs only 0.78kg with ergonomic grip for one-handed use. Effortlessly reaches deep cavities and hard-to-reach areas.
- Non-contact, zero-consumable cleaning: Requires no chemicals or abrasives. Leaves base material virtually untouched with less than 0.0003mm surface damage.
- High-speed removal: Strips rust from 10cm² in just 5 seconds—10 times faster than traditional methods.
- Precision control: Red-light assisted positioning, 9 customizable cleaning modes, CE/FDA certified for safe, worry-free operation.
- Metals: Stainless steel, carbon steel, aluminum alloy (for oxide film removal), mold steel (for paint stripping, rust removal).
- Non-metals: Ceramics, glass, rubber molds (for residue removal).
- Typical Applications:
Automotive sheet metal refurbishment, post-welding cleaning of battery trays.
Cultural heritage restoration (bronze ware, stone carvings), oil stain removal from precision electronic components.
Small holes and grooves in ships, pre-treatment for flaw detection on train bogie welds.
| Content | Parameter |
| Supply voltage | 110V/220V/380V ±10%, 50/60Hz AC |
| Whole machine power consumption | 500W |
| Place the environment | flat, no vibration, no impact |
| Working temperature | 0°C~40°C |
| Working environment humidity | ≤80% |
| Content | Parameter |
| Laser power | ≤300W |
| Power adjustment range (%) | 10-100 (gradient adjustable) |
| Repetition frequency (KHz) | 20-50 (gradually adjustable) |
| F-theta Lens | F245 |
| Wave length | 1064nm |
| Content | Parameter |

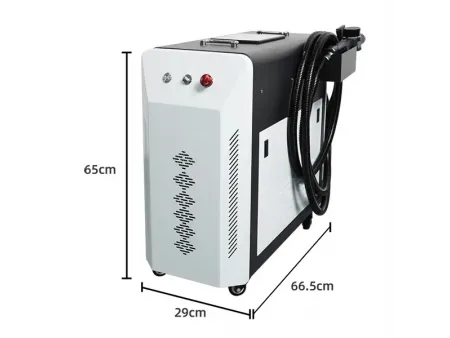

| Machine size | 29×66.5x65cm |
| Net weight | 40Kgs |
| Optical cable length | 3 meters (5-10 meters can be customized) |
| Cleaning head weight | 0.78Kgs |
| Scan width | 175x175mm |
| Move method | Handheld |

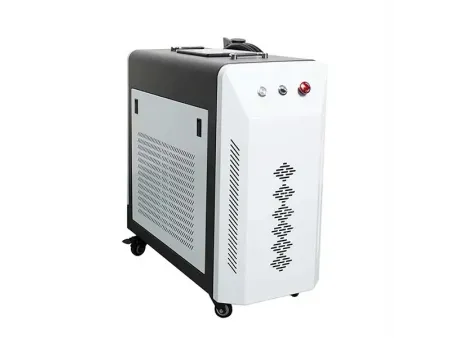

Main unit (including pulse fiber laser, air cooling system)
Features a high-energy pulse fiber laser with peak power up to 20kW and single pulse energy ≤500mJ. The 1064nm wavelength precisely matches the metal absorption peak, resulting in a heat-affected zone (HAZ) of ≤10μm. The laser has a lifespan of ≥100,000 hours, supports 24-hour continuous operation, and reduces annual maintenance costs by 60%. The entire machine uses an air-cooled heat dissipation structure, eliminating water quality dependence and preventing scaling risks associated with water cooling systems through multi-channel turbine heat dissipation.
Handheld laser cleaning head
Offers coaxial red light indication with ±0.1mm precision, allowing for preset cleaning paths to prevent misoperation. Its lightweight ergonomic design, weighing ≤0.78kg, supports 360° multi-angle operation, easily handling inner walls of gears and weld blind spots. Built-in sensors monitor temperature in real-time, automatically reducing frequency if overheated to protect the lifespan of optical components.
Smart touch system
Provides a high-resolution display interface, supporting real-time parameter monitoring and operational feedback, ensuring precise control over key parameters such as laser power, frequency, and energy. It supports parameter presets, allowing unique parameters to be saved for cleaning different materials, significantly improving work efficiency.
Fiber optic transmission cable
Ensures stable and efficient energy transmission. The double-layered armored fiber optic cable (like the blue spiral cable in the image) is bend-resistant and anti-electromagnetic interference, with energy loss <3%. The 3-meter length is suitable for mobile cleaning of large workpieces (e.g., ship decks, wind turbine blades), avoiding frequent repositioning of the main unit.
- Protective lenses
- Focusing lenses
