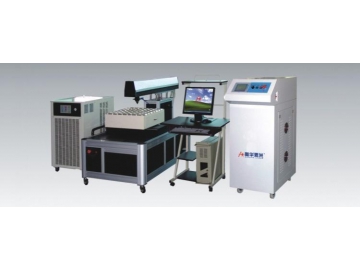

High Precision YAG Laser Punch Cutting Machine
Application
The high precision YAG laser punch cutting machine is widely used in fields such as electronic components, electrical appliances, jewelry, glasses, hardware, auto parts, communication products, plastic buttons and IC. It also used for metal, alloy and oxides, ABS, epoxy resin, and printing ink.
| Model | |||
| Max. average power of laser output | 200W | 400W | 600W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Laser repetition rate | 0.02mm | 0.02mm | 0.02mm |
| Energy instability | ≤2% | ≤2% | ≤2% |
| Mini. Cut line width | 0.1mm | 0.15mm | 0.2mm |
| Max. cut speed | ≤600mm/min(depends on materials) | ≤600mm/min(depends on materials) | ≤600mm/min(depends on materials) |
| Max. cut thick | 0.2-1.5mm | 0.2-3mm | 0.2-6mm |
| Continuous working time | ≥20hrs | ≥20hrs | ≥20hrs |
| Max. cutting width | Customized | Customized | Customized |
| Repeat positioning accuracy of X,Y & Z | ±0.02mm | ±0.02mm | ±0.02mm |
| Power requirement | 220V±10%/50HZ(60HZ optional)/30A | 380V±10%/50HZ(60HZ optional)/30A | 380V±10%/50HZ(60HZ optional)/30A |
| Control system | PC | PC | PC |
| Positioning system | Red light (CCD optional) | Red light (CCD optional) | Red light (CCD optional) |
Feature
● The high precision YAG laser punch cutting machine uses an industrial PC control system that can operate both manually and automatically.
● This machine uses a solid-state laser to ensure low usage and maintenance costs.
● It punches small holes (0.1mm) on thin sheets, and if using a servo system, the holes are even more precise. With an open design, the machine is easy to operate, even for large projects.
● A protection and scram device are also equipped on the laser punch cutting machine to ensure user safety.
