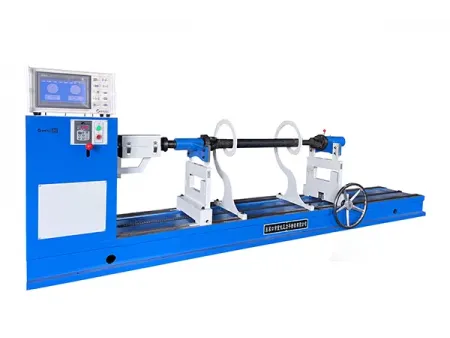

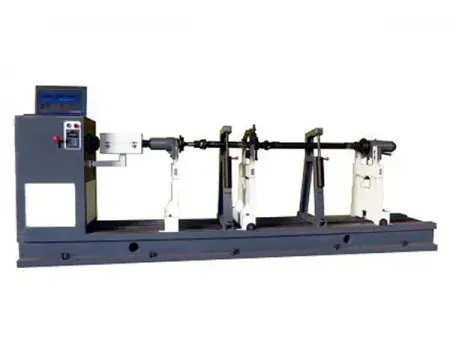

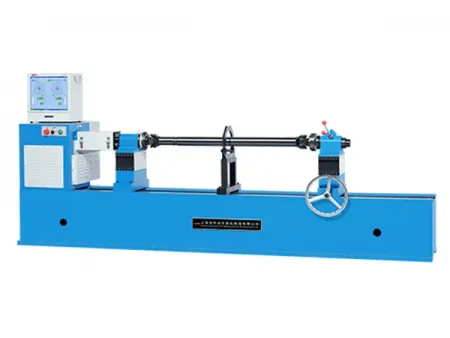

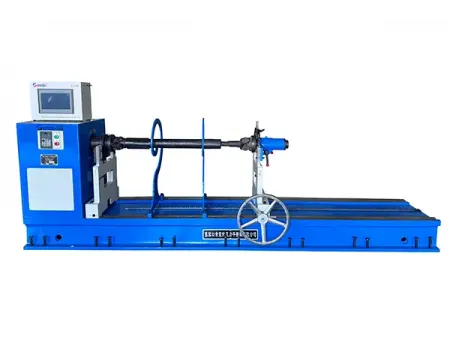

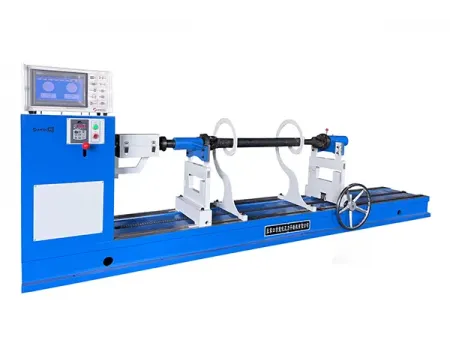

Drive Shaft Balancing Machine
Horizontal balancing machine for dynamic balancing of drive shafts
Applications
Ideal for drive shaft manufacturing in automobiles, ships, and heavy industrial equipment
For industries such as shipbuilding and steel manufacturing achieving optimal balance in heavy-duty drive shafts is an important task. This horizontal balancing machine, built for the precise balancing of large-scale drive shafts, adapts easily to different connection types through interchangeable fixtures. Whether used in hard-bearing or soft-bearing configurations, the system accommodates a range of applications. For more demanding projects, customized models can handle drive shafts up to 3 tons. The drive shaft balancer length, along with its fixtures, can also be tailored to meet specific balancing requirements, ensuring reliability across various sectors.
Technical Specifications
| Model | YDW-2000A |
| Max. shaft weight (kg) | 2000 |
| Drive shaft alignment method | Single section double-sided alignment |
| Supporting structure | Rigid bearing |
| Max. workpiece length | 3500mm |
| Bed length | 5300mm |
| Balancing speed | 800-1000r/min |
| Min. achievable residual unbalance | ≤20gmm/kg |
| Unbalance reduction ratio | ≥85% |
| Motor power | 11kW |
Standards
- ISO 11342:1998
Mechanical Vibration — Methods and Criteria for the Mechanical Balancing of Flexible Rotors - ASTM D999
Standard Test Methods for Vibration Testing of Shipping Containers - ASTM E1012-2014
Standard Practice for Verification of Performance of Horizontal Shaft Rotating Balancing Machines - GB/T 9239.1-2006
Mechanical Vibration - Balance Quality Requirements for Rotors in a Constant (Rigid) State - Part 1: Specification and Verification of Balance Tolerances - GB/T 11348-2008
Mechanical vibration - Methods and Criteria for the Mechanical Balancing of Flexible Rotors
