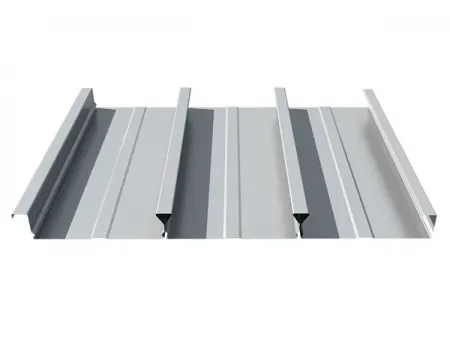

YX65-253-760

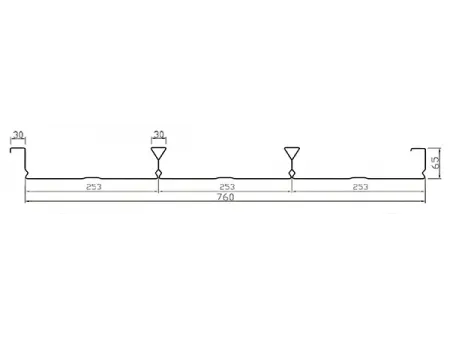

65mm depth×760mm width metal decking profile

Effective cover width: 760mm
Overall width of sheet: 1250mm
Length: Customizable
Thickness: 0.75mm-1.2mm
Material: Galvanized steel sheet, galvalume steel sheet

These closed profile decks are designed so that the ribs are completely wrapped in concrete, working almost like reinforcement bars inside a slab. This integration makes the floor system stronger, more stable, and safer under heavy loads. Since they act as permanent formwork, they cut down on temporary supports and shorten construction time, giving projects both efficiency and long-term reliability.

Applications

Ideal for projects that demand solid floor performance, such as high-rise steel structures, industrial facilities, transport hubs like airports and rail stations, as well as shopping malls and stadiums.

Specifications

Model	YX65-253-760
Effective cover width	760mm
Length	Customizable
Thickness	0.75mm-1.2mm
Material	Galvanized steel sheet, galvalume steel sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Lifespan	At least 30 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Applications	Multi-story steel structure buildings
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Cross Section Properties

Model	Overall width of sheet (mm)	Sheet thickness (mm)	Profile weight (kg/m²)	Moment of inertia (cm⁴/m)	Positive bending moment (cm³/m)	Negative bending moment (cm³/m)
YX65-253-760	1250	0.8	10.33	71.84	40.11	17.07
		1.0	12.91	89.66	49.81	21.35
		1.2	15.49	107.53	59.41	25.42
